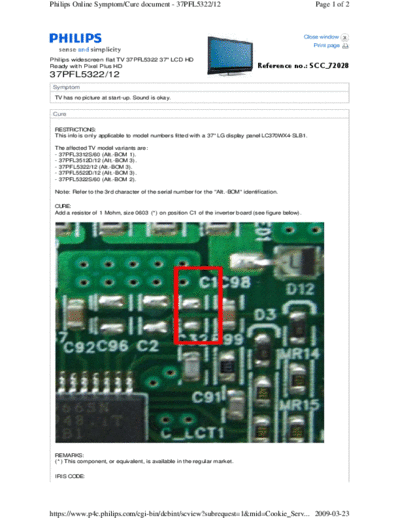

Image preview - the first page of the document



>> Download SCC 72028 documenatation <<

Text preview - extract from the document

Philips Online Symptom/Cure document - 37PFL5322/12                                                     Page 1 of 2



                                                                                                    Close window
                                                                                                       Print page

Philips widescreen flat TV 37PFL5322 37" LCD HD
Ready with Pixel Plus HD                                                        Reference no.: SCC_72028
37PFL5322/12
Symptom
 TV has no picture at start-up. Sound is okay.


Cure


 RESTRICTIONS:
 This info is only applicable to model numbers fitted with a 37" LG display panel LC370WX4-SLB1.

 The affected TV model variants are:
 - 37PFL3312S/60 (Alt.-BOM 1).
 - 37PFL3512D/12 (Alt.-BOM 3).
 - 37PFL5322/12 (Alt.-BOM 3).
 - 37PFL5522D/12 (Alt.-BOM 3).
 - 37PFL5322S/60 (Alt.-BOM 2).

 Note: Refer to the 3rd character of the serial number for the "Alt.-BOM" identification.

 CURE:
 Add a resistor of 1 Mohm, size 0603 (*) on position C1 of the inverter board (see figure below).




 REMARKS:
 (*) This component, or equivalent, is available in the regular market.

 IRIS CODE:




https://www.p4c.philips.com/cgi-bin/dcbint/scview?subrequest=1&mid=Cookie_Serv... 2009-03-23
Philips Online Symptom/Cure document - 37PFL5322/12                                        Page 2 of 2



 2310


Attachments
 No attachment available.
