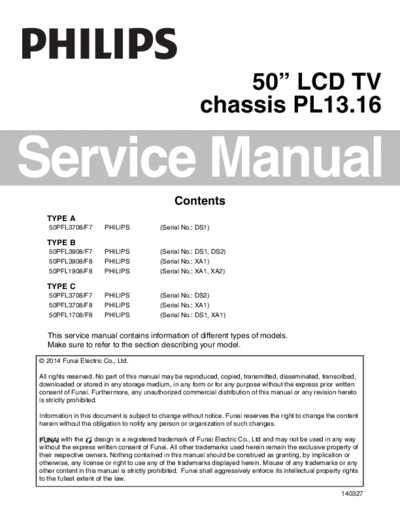

Image preview - the first page of the document
>> Download philips_chassis_pl13.16_sm documenatation <<Text preview - extract from the document 50" LCD TV
chassis PL13.16
Service Manual Contents
TYPE A
50PFL3708/F7 PHILIPS (Serial No.: DS1)
TYPE B
50PFL3908/F7 PHILIPS (Serial No.: DS1, DS2)
50PFL3908/F8 PHILIPS (Serial No.: XA1)
50PFL1908/F8 PHILIPS (Serial No.: XA1, XA2)
TYPE C
50PFL3708/F7 PHILIPS (Serial No.: DS2)
50PFL3708/F8 PHILIPS (Serial No.: XA1)
50PFL1708/F8 PHILIPS (Serial No.: DS1, XA1)
This service manual contains information of different types of models.
Make sure to refer to the section describing your model.
