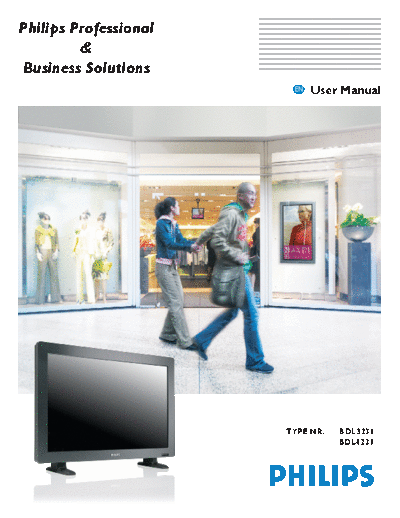

Image preview - the first page of the document
naamloos


>> Download naamloos documenatation <<

Text preview - extract from the document
Philips Professional
         &
Business Solutions
                        EN   User Manual




                       TYPE NR.   BDL3231
                                  BDL4231
User Manual BDL3231/BDL4231

SAFETY INSTRUCTIONS

WARNINGS AND PRECAUTIONS

                                   KNOW THESE SAFETY SYMBOLS




CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER
SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.


            This symbol indicates high voltage is present inside. It is dangerous to make any kind of contact with any
            inside part of this product.


            This symbol alerts you that important literature concerning operation and maintenance has been included
            with this product.


Note to CATV system installer: This reminder is provided to call CATV system installer's attention to Article
820-40 of the National Electrical Code (Section 54 of Canadian Electrical Code, Part I), that provides guidelines for
proper grounding and, in particular, specifies that the cable ground shall be connected to the grounding system of the
building as close to the point of cable entry as practical.

Caution: FCC/CSA regulations state that any unauthorized changes or modifications to this equipment may void the
user's authority to operate it.

Caution: To prevent electric shock, match the wide blade of plug to the wide slot, and fully insert the plug.

Attention: Pour
