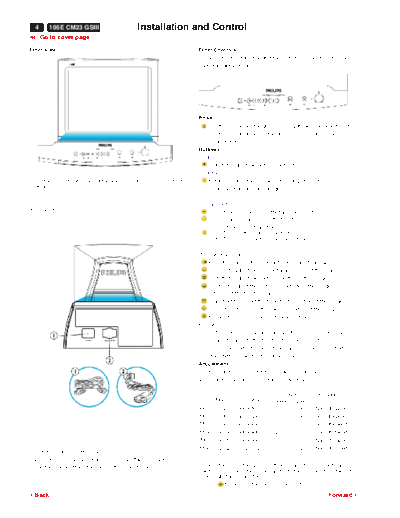

Image preview - the first page of the document
>> Download p04 documenatation <<
Text preview - extract from the document
4 105E CM23 GSIII Installation and Control
9 Go to cover page
Front View Front Controls
For an optimized adjustment of the picture following controls are
available at the front.
Power
1.Press this knob, the green LED lights and the power is ON.
2.Press this knob again, the green LED disappears and
the power is OFF.
Hotkeys
Contrast
Rotate to adjust the picture contrast level.
Brightness
For detailed information about the knobs and keys, please refer to Rotate to adjust the overall screen brightness as a
controls compensation for ambient light.
Digital Controls
Rear View Press to adjust (increase) the function selected.
Press to adjust (decrease) the function selected.
To select the level of function.
"SHIFT" LED off - control is on first level.
"SHIFT" LED on - control is on second level.
The function pads:
H-Shift: to adjust the horizontal position of the image.
H-Size: to adjust the horizontal amplitude of the image.
V-Shift: to adjust the vertical position of the image.
V-Size: to adjust the vertical amplitude of the image.
Select level of the function pads:
Trapezoid:to correct the trapezoid distortion of the image.
Pincushion:to correct the barrel distortion of the image.
Recall: to recall original factory preset mode.
Remarks:
1.When pressing any function pad, the "Shift" LED will flash
once to indicate the function has been selected.
2.Once the limit of the adjustable range has been reached,
the shift LED will flash continuously.
Adjustment
For the monitor is pre-set with 6 modes for optimal display size
and centering as indicated in the following table:
Frequen Remark
Mode Resolution H(KHz) V(Hz)
M01 VGA 600 x 400 31.5 70 Non-interlaced
M02 VGA 600 x 480 31.5 60 Non-interlaced
M03 VGA 600 x 480 37.5 75 Non-interlaced
M04 SVGA 600 x 480 46.9 75 Non-interlaced
M05 SVGA 800 x 600 53.7 85 Non-interlaced
M06 EVGA 1024 x 768 48.3 60 Non-interlaced
1.Power in _ attach power cable here.
2.Video In - this is a cable which is already attached to your
monitor. Connect the other end of the cable to your PC. The set will save the user's setting parameters automatically.
After 10 seconds of key-pad inactivity, the LED will flash twice to
indicaate the parameters being saved.
Press to recall factory preset mode. (at second level)
