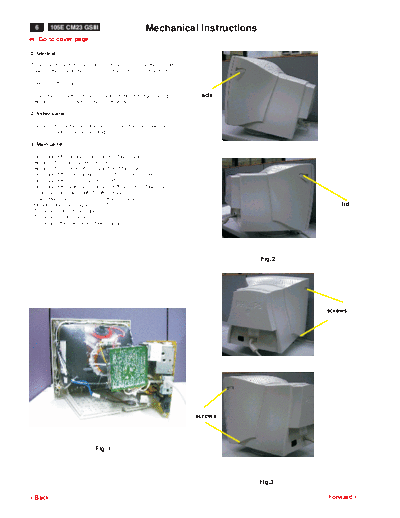

Image preview - the first page of the document
>> Download p06 documenatation <<Text preview - extract from the document 6 105E CM23 GSIII Mechanical Instructions
9 Go to cover page
0. General
To be able to perform measurements and repairs on the "circuit
boards", these unit should placed in the service position first.
1. Remove the rear cover
- Open two lids with "-" type screwdriver. Refer to fig2 and fig3. lids
- Remove 4 screws with "+" type screwdriver.
2. Video panel
- Remove the metal shielding on rear side of Video panel by
desolder lags of metal shielding.
3. Main panel
- Disconnect the degaussing coil from Main panel.
- Remove the video panel from CRT.
- Remove the "screw" of I/F cable from Main panel.
- Disconnect the CRT ground "1001" from Video panel.
- Disconnect the Hi-Pot cap from CRT.
- Disconnect the yoke wire connector "M401" from Main panel.
- Slide the main panel out of bottom tray.
- Place Main panel in service position as shown in Fig.1.
- Mount Video panel again on CRT. lid
- To connect Hi-Pot cap again.
- To connect "1001" again.
- To connect the yoke wire "M401" again.
Fig.2
screws
screws
Fig. 1
Fig.3
