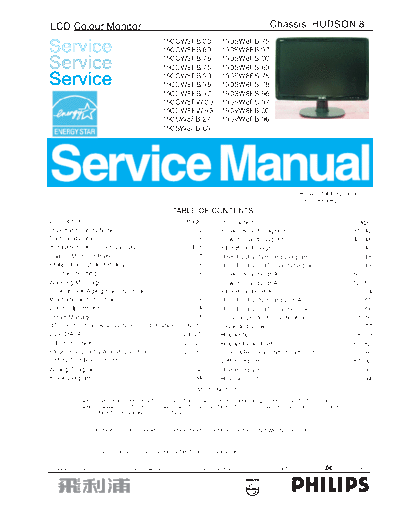

Image preview - the first page of the document
>> Download 190cw8_190sw8_20080320_137 documenatation <<
Text preview - extract from the document
LCD Colour Monitor Chassis: HUDSON 8
Service 190CW8FB/00
190CW8FB/69
190SW8FB/75
190SW8FB/97
Service 190CW8FB/78
190CW8FB/75
190SW8FS/00
190SW8FS/69
Service 190CW8FB/93
190CW8FB/96
190SW8FS/75
190SW8FS/78
190CW8FB/97 190SW8FS/96
190CW8FW/00 190SW8FS/97
190CW8FW/93 190VW8FB/00
190SW8FB/27 190VW8FB/96
190SW8FB/69
Horizontal frequencies
30 - 83 kHz
TABLE OF CONTENTS
Description Page Description Page
Important Safety Notice---- ------------------------------ 2 Scaler Board Diagram -----------------------------35~42
Technical Data----------------------------------------------3 Power Board Diagram -----------------------------43~46
Instalation/On Screen Display------------------------4~6 KEY Board Diagram-------------------------------------47
Failure Mode Of Panel ------------------------------------7 USB-PLUG-IN Board Diagram------------------------48
Philips Pixel Defect Policy --------------------------------8 USB-PLUG-OUT Board Diagram---------------------49
Troubleshooting--------------------------------------------9 Scaler Board C.B.A.--------------------------------50~51
Warning Message ----------------------------------------10 Power Board C.B.A.--------------------------------52~53
Lock/unlock,Aging,Factory mode ---------------------11 KEY Board C.B.A. ---------------------------------------54
Mechanical Instructions----------------------------12~13 USB-PLUG-IN Board C.B.A. --------------------------55
Color adjustment -----------------------------------------14 USB-PLUG-OUT Board C.B.A. -----------------------56
Smart Manage ---------------------------------------------15 General product specification--------------------57~76
DDC Instructions& Serial Number Definition ---16~23 Exploded View -------------------------------------------77
DDC DATA --------------------------------------------24~25 Repair tips--------------------------------------------78~79
ISP Instruction----------------------------------------26~28 Repair Flow chart-----------------------------------80~82
FAQs (Frequently Asked Questions) -------------29~30 Spare&Recommended parts list-----------------83~86
Safety Test Requirments--------------------------------31 Different parts list-----------------------------------87~92
Wiring Diagram-------------------------------------------32 Updated parts --------------------------------------------93
Block Diagram----------------------------------------33~34 Revision List ----------------------------------------------94
SAFETY NOTICE
ANY PERSON ATTEMPTING TO SERVICE THIS CHASSIS MUST FAMILIARIZE HIMSELF WITH THE CHASSIS
AND BE AWARE OF THE NECESSARY SAFETY PRECAUTIONS TO BE USED WHEN SERVICING ELECTRONIC
EQUIPMENT CONTAINING HIGH VOLTAGES.
CAUTION: USE A SEPARATE ISOLATION TRANSFORMER FOR THIS UNIT WHEN SERVICING.
REFER TO BACK COVER FOR IMPORTANT SAFETY GUIDELINES
Published by Philips CE Copyright reserved Subject to modification Aug,26, 2007 GB 3122 785 17400
2 HUDSON 8 Important Safety Notice
Proper service and repair is important to the safe,
reliable operation of all Philips Consumer Electronics
Company** Equipment. The service procedures
recommended by Philips and described in this service
manual are effective methods of performing service
operations. Some of these service operations require
the use of tools specially designed for the purpose. The
special tools should be used when and as
recommended.
It is important to note that this manual contains various
CAUTIONS and NOTICES which should be carefully
read in order to minimize the risk of personal injury to
service personnel. The possibility exists that improper
service methods may damage the equipment. It is also
important to understand that these CAUTIONS and
NOTICES ARE NOT EXHAUSTIVE. Philips could not
possibly know, evaluate and advise the service trade of
all conceivable ways in which service might be done or
of the possible hazardous consequences of each way.
Consequently, Philips has not undertaken any such
broad evaluation. Accordingly, a servicer who uses a Take care during handling the LCD module with backlight
service procedure or tool which is not recommended by unit
Philips must first satisfy himself thoroughly that neither - Must mount the moduleusing mounting holes arranged infour
his safety nor the safe operation of the equipment will corners.
be jeopardized by the service method selected. - Do not press onthe panel, edge of theframe strongly or electric
shock as this will result in damage to the screen.
* * Hereafter throughout this manual, Philips Consumer
Electronics Company will be referred to as Philips. - Do not scratch orpress on the panel withany sharp objects, such
as pencil or pen asthis may result in damage to the panel.
- Protect the module fromthe ESD as it maydamage the electronic
WARNING circuit (C-MOS).
- Make certain that treatment person s body are grounded through
Critical components having special safety
! wrist band.
characteristics are identified with a by the Ref. No.
- Do not leave themodule in high temperature andin areas of high
in the parts list and enclosed within a broken line*
(where several critical components are grouped in one humidity for a long time.
area) along with the safety symbol ! on the - Avoid contact with water as it may ashort circuit within the module.
schematics or exploded views. - If the surface ofpanel become dirty, please wipe it off with a soft
material. (Cleaning with a dirty or rough cloth may damage the
Use of substitute replacement parts which do not have
panel.)
the same specified safety characteristics may create
shock, fire, or other hazards.
Under no circumstances should the original design be
modified or altered without written permission from
Philips. Philips assumes no liability, express or implied,
arising out of any unauthorized modification of design.
Servicer assumes all liability.
* Broken Line
Technical Data HUDSON 8 3
Type NR. : LPL, LM190WX1-TLA1 (TN) Pin Assignment
Number of Pixels. : 1440 (H) x900 (V)
Physical Size. : 427.2(H) x 277.4(V) x 15.3(D) mm(Typ.)
Pixel Pitch. : 0.095*RGB(H)mm x 0.285(V)mm
Color pixel arrangement. : RGB vertical stripes
Support Color. : 16.7M colors
Display Mode. : Normally White
Backlight. : CCFL edge light system Assignment
Pin No. Assignment Pin No.
Active area. (WXH). : 410.4 (H) x 256.5 (V)
Viewing Angle (CR>=10). : R/L 160(Typ.), U/D 160(Typ.) 1 Red video input 9 DDC +3.3V OR +5V
Contrast ratio. : 1000:1(Typ.) 700:1(Min.) 2 Green video input 10 GND
White luminance. : Original color 250 nits (Min), 3 11
Blue video input GND
300 nits (Typ.)
4 GND 12 Serial data line (SDA)
Type NR. : CMO, M190A1-L06 (TN) 5 Cable detect 13 H-sync
Number of Pixels. : 1440 (H) x900 (V)
6 Red video GND 14 V-sync
Physical Size. : 427.2(w)*277.4(h)*17.0(d) (Typ) mm
Pixel Pitch. : 0.285 mm x 0.285 mm 7 Green video GND 15 Data clock line (SCL)
Color pixel arrangement. : RGB vertical stripes 8
Support Color. : 16.7M colors ( 6 bits+FRC ) Blue video GND
Display Mode. : Normally White
Backlight. : CCFL edge light system Input DVI-D connector pin
Active area. (WXH). : 410.4 x 256.5mm (19.05" diagonal)
Viewing Angle (CR>=10). : 75/75 (min), 85/85 (typ) for Horizontal &
70/70 (min), 80/80 (typ) for Vertical
Contrast ratio. : 850:1(Typ.) 500:1(Min.)
White luminance. : Original color 230 nits (Min), 300 nits (Typ.)
Scanning frequencies Pin No. Description
H-Frequency. : 30K - 83 KHz 1 T.M.D.S. data2-
V-Frequency. : 56 - 76 Hz 2 T.M.D.S. data2+
3 T.M.D.S. data2 shield
Video dot rate. : < 140 MHz
4 No Connect
