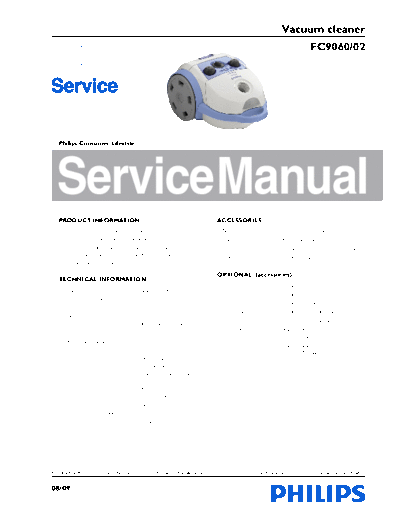

Image preview - the first page of the document
>> Download fc9060_02 documenatation <<
Text preview - extract from the document
Vacuum cleaner
FC9060/02
Philips Consumer Lifestyle
Service Manual
PRODUCT INFORMATION ACCESSORIES
- This product meets the requirements regarding - Nozzle : All purpose nozzle RD264
interference suppression on radio and TV. - Special Nozzle : Hard Floor Nozzle
- After the product has been repaired, it should function - Tubes : Metal lacquered telescopic tubes
properly and has to meet the safety requirements as - Coupling : Button coupling
officially laid down at this moment.
OPTIONAL (accessories)
TECHNICAL INFORMATION
- FC 8021 : S-bag Classic
- Colour : Blue bonnet / White
- FC 8022 : S-bag Clinic
- Power consumption : 1800 W
- FC 8023 : S-bag Anti-Odour
(IEC) 230V
- FC 8024 : S-bag Long Performance
- Maximum Air displacement : 43 l/s
- FC 8025 : S-fresh scent granules
- Vacuum : 300 mbar / 30.0 kPa
- FC 8030 : Super Clean Air filter, High-Flow
- Type number dustbag : FC8021
AFS exhaust filter
- Duststorage capacity : 3L
- FC 8031 : Super Clean Air HEPA filter,
- Cord length : 7m HEPA12 exhaust filter
- Fiter system : Double layered
compatible s-bagTM
: 3 layer permanent motor
protection filter
: Super Clean Air
exhaust filter
- Dimensions of cleaner : 449 x 324 x 250 mm
- Dimensions of packaging : 593 x 393 x 296 mm
- Net weight : 5.7 kg
