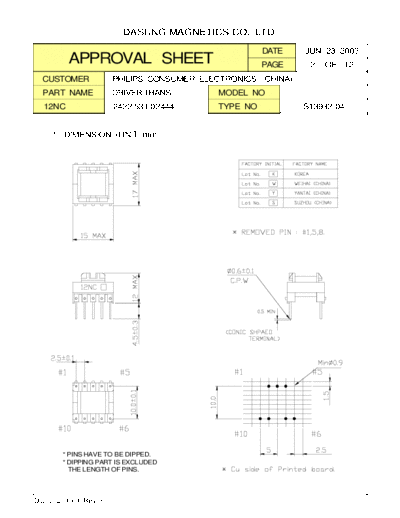

Image preview - the first page of the document
>> Download FM33_242253102444_spec documenatation <<
Text preview - extract from the document
DASUNG MAGNETICS CO., LTD.
DATE JUN. 23, 2003
APPROVAL SHEET PAGE 2 OF 12
CUSTOMER PHILIPS CONSUMER ELECTRONICS. (CHINA)
PART NAME DRIVER TRANS MODEL NO
12NC 2422 531 02444 TYPE NO S13932-04
1. DIMENSION. (UNIT: mm)
* PINS HAVE TO BE DIPPED.
* DIPPING PART IS EXCLUDED
THE LENGTH OF PINS.
DSI-C-201-01(Rev.0)
DASUNG MAGNETICS CO., LTD.
DATE JUN. 23, 2003
APPROVAL SHEET PAGE 3 OF 12
CUSTOMER PHILIPS CONSUMER ELECTRONICS. (CHINA)
PART NAME DRIVER TRANS MODEL NO
12NC 2422 531 02444 TYPE NO S13932-04
2. SCHEMATIC. (BOTTOM)
5 6
4 7
3 8
2 9
1 10
? REMOVED PIN : #1 , 5 , 8 .
DSI-C-201-01(Rev.0)
DASUNG MAGNETICS CO., LTD.
DATE JUN. 23, 2003
APPROVAL SHEET PAGE 4 OF 12
CUSTOMER PHILIPS CONSUMER ELECTRONICS. (CHINA)
PART NAME DRIVER TRANS MODEL NO
12NC 2422 531 02444 TYPE NO S13932-04
3. WINDING SPECIFICATIONS.
WIND PIN NO TURNS & GAUGE
WINDING ME- INSULTAION TAPE
- ING
THOD
NO.
START FILNAL TURNS WIRE GAUGE
TURNS THICKNES
W1 6 7 34 t #35 AWG (0.14F ) SOLENOID
1 t 25u x 7.5mm
W2 4 2 34 t #35 AWG (0.14F ) SOLENOID
1 t 25u x 7.5mm
W3 9 10 34 t #35 AWG (0.14F ) SOLENOID
1 t 25u x 7.5mm
W4 t # AWG. ( . F)
t u x mm
W5 t # AWG. ( . F)
t u x mm
W6 t # AWG. ( . F)
t u x mm
W7 t # AWG. ( . F)
t u x mm
W8 t # AWG. ( . F)
t u x mm
W9 t # AWG. ( . F)
t u x mm
W10 t # AWG. ( . F)
t u x mm
W11 t # AWG. ( . F)
t u x mm
W12 t # AWG. ( . F)
t u x mm
W13 t # AWG. ( . F)
t u x mm
W14 t # AWG. ( . F)
t u x mm
DSI-C-201-01(Rev.0)
DASUNG MAGNETICS CO., LTD.
DATE JUN. 23, 2003
APPROVAL SHEET PAGE 5 OF 12
CUSTOMER PHILIPS CONSUMER ELECTRONICS. (CHINA)
PART NAME DRIVER TRANS MODEL NO
12NC 2422 531 02444 TYPE NO S13932-04
4. ELECTRICAL CHARACTERISTICS.
NO. ITEM TERMINAL STANDARD SPEC ITEM TERMINAL STANDARD SPEC
4 _ 2 1.20 mH ◦ Jabse Service Manual Search 2024 ◦ Jabse Pravopis ◦ onTap.bg ◦ Other service manual resources online : Fixya ◦ eServiceinfo
