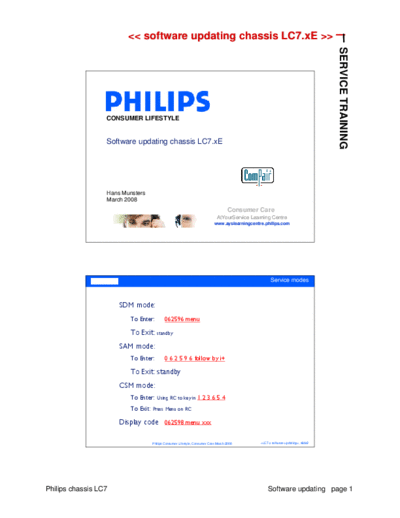

Image preview - the first page of the document
>> Download software_updating_chassis_lc7_115 documenatation <<
Text preview - extract from the document
<< software updating chassis LC7.xE >>
SERVICE TRAINING
CONSUMER LIFESTYLE
Software updating chassis LC7.xE
Hans Munsters
March 2008
Consumer Care
AtYourService Learning Centre
www.ayslearningcentre.philips.com
Service modes
SDM mode:
To Enter: 062596 menu
To Exit: standby
SAM mode:
To Enter: 0 6 2 5 9 6 follow by i+
To Exit: standby
CSM mode:
To Enter: Using RC to key in 1 2 3 6 5 4
To Exit: Press Menu on RC
Display code 062598 menu xxx
Philips Consumer Lifestyle, Consumer Care March 2008 , slide2
Philips chassis LC7 Software updating page 1
<< software updating chassis LC7.xE >>
SERVICE TRAINING
Customer Service Mode page 1
Part of SW
12nc display
Philips Consumer Lifestyle, Consumer Care March 2008 , slide3
Customer Service Mode page 2
HDMI audio
Detected format
1080p board
Ambilight
Philips Consumer Lifestyle, Consumer Care March 2008 , slide4
Philips chassis LC7 Software updating page 2
<< software updating chassis LC7.xE >>
SERVICE TRAINING
SSB top side
7H00 IBO
software
Philips Consumer Lifestyle, Consumer Care March 2008 , slide5
SSB bottom side
7310 main
software
IBO nvm
HDMI nvm (EDID)
I2C UART
Philips Consumer Lifestyle, Consumer Care March 2008 , slide6
Philips chassis LC7 Software updating page 3
<< software updating chassis LC7.xE >>
SERVICE TRAINING
1080p board for full HD display
There is no nvm on
1080p board
Nvm is integrated into
main nvm on SSB
1080p software
compair
Philips Consumer Lifestyle, Consumer Care March 2008 , slide7
Software Clustering:
Analogue LCD - LC71EL1_v1.24
Analogue PDP - LC71EP1_v1.24
Digital LCD - LC72EL1_v1.24
Digital PDP - LC72EP1_v1.24
Digital LCD - LC72ELH_v1.15 1080p display
Philips Consumer Lifestyle, Consumer Care March 2008 , slide8
Philips chassis LC7 Software updating page 4
<< software updating chassis LC7.xE >>
SERVICE TRAINING
Software download via excel file
Philips Consumer Lifestyle, Consumer Care March 2008 , slide9
How to Program LC7 software ?
Behind the tuner there is I2C connection for Compair
UART
Compair I2C
Philips Consumer Lifestyle, Consumer Care March 2008 , slide10
Philips chassis LC7 Software updating page 5
<< software updating chassis LC7.xE >>
SERVICE TRAINING
ComPair & UART Connector
