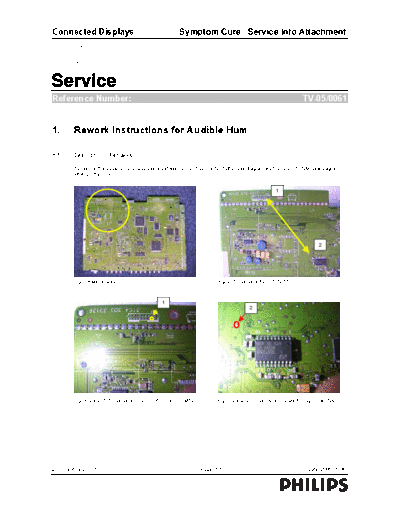

Image preview - the first page of the document
ftp2_audible_hum_126


>> Download ftp2_audible_hum_126 documenatation <<

Text preview - extract from the document
Connected Displays                                       Symptom Cure / Service Info Attachment




Reference Number:                                                                                                 TV-05/0061


1.       Rework Instructions for Audible Hum

1.1.     Description / Remarks

         To restore the audio ground, add a wire between pin 2 of connector 1M52 (see diagram B21) and point IA09 (see diagram
         B6A) on the SSB:


                                                                                                      1




                                                                                                                          2




         Fig.1 Rework area.                                                Fig. 2 Solder wire from "1" to "2".



                                                 1
                                                                                          2




         Fig. 3 Detail 1: Solder wire on pin 2 of connector 1M52.          Fig. 4 Detail 2: Solder wire on plate through hole IA09.




Document version: 1.0                                               Page: 1/1                                        Date: 2005-05-30
