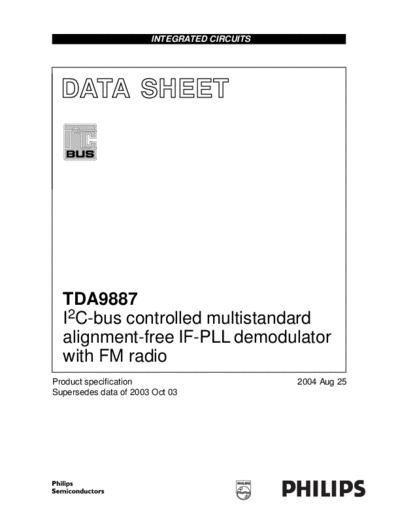

Image preview - the first page of the document
>> Download TDA9887_3 documenatation <<
Text preview - extract from the document
INTEGRATED CIRCUITS
DATA SHEET
TDA9887
I2C-bus controlled multistandard
alignment-free IF-PLL demodulator
with FM radio
Product specification 2004 Aug 25
Supersedes data of 2003 Oct 03
Philips Semiconductors Product specification
I2C-bus controlled multistandard alignment-free
TDA9887
IF-PLL demodulator with FM radio
CONTENTS 10 LIMITING VALUES
11 THERMAL CHARACTERISTICS
1 FEATURES
12 CHARACTERISTICS
2 GENERAL DESCRIPTION
13 TEST AND APPLICATION INFORMATION
3 APPLICATIONS
14 PACKAGE OUTLINES
4 ORDERING INFORMATION
15 SOLDERING
5 QUICK REFERENCE DATA
15.1 Introduction to soldering surface mount
6 BLOCK DIAGRAM
packages
7 PINNING 15.2 Reflow soldering
8 FUNCTIONAL DESCRIPTION 15.3 Wave soldering
15.4 Manual soldering
8.1 VIF amplifier
15.5 Suitability of surface mount IC packages for
8.2 Tuner AGC and VIF-AGC
wave and reflow soldering methods
8.3 VIF-AGC detector
8.4 FPLL detector 16 DATA SHEET STATUS
8.5 VCO and divider 17 DEFINITIONS
8.6 AFC and digital acquisition help
18 DISCLAIMERS
8.7 Video demodulator and amplifier
8.8 Sound carrier trap 19 PURCHASE OF PHILIPS I2C COMPONENTS
8.9 SIF amplifier
8.10 SIF-AGC detector
8.11 Single reference QSS mixer
8.12 AM demodulator
8.13 FM demodulator and acquisition help
8.14 Audio amplifier and mute time constant
8.15 Radio mode
8.16 Internal voltage stabilizer
8.17 I2C-bus transceiver and module address
9 I2C-BUS CONTROL
9.1 Read format
9.1.1 Slave address
9.1.2 Data byte
9.2 Write format
9.2.1 Subaddress
9.2.2 Data byte for switching mode
9.2.3 Data byte for adjust mode
9.2.4 Data byte for data mode
2004 Aug 25 2
Philips Semiconductors Product specification
I2C-bus controlled multistandard alignment-free
TDA9887
IF-PLL demodulator with FM radio
1 FEATURES
