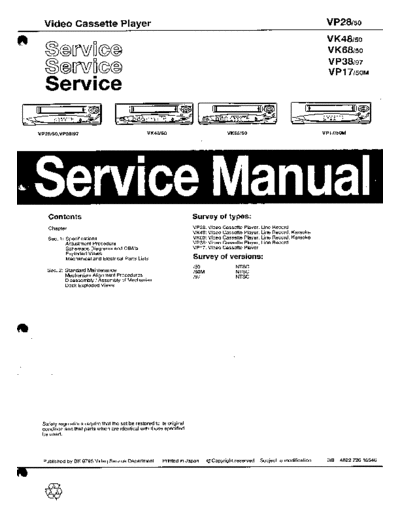

Image preview - the first page of the document
>> Download PHILIPS_VP28_VP48_VP68_VP38_VP17_VCR documenatation <<
Text preview - extract from the document
SECTION 5
PARTS LIST
5.1 CABINET AND CHASSIS ASSEMBLY
5-1 ! ... Safety component, use only this type
1. ACCESSORIES
306 996500000518 REMOTE CONTROLLER,VR899/55
306 996500000239 REMOTE CONTROLLER,VR799/55
306A 996500000465 COVER(BATTERY),VR899/55
306A 482244201904 COVER(BATTERY),VR799/55
310 996500000524 INST BOOK(EN.CH.AR)
2. CABINET AND CHASSIS ASSEMBLY
501 996500000528 ! FRONT PANEL ASSY,VR899/55
501 996500000529 ! FRONT PANEL ASSY,VR799/55
501A 996500000357 CASSETTE DOOR
501B 482249242781 TORSION SPRING
501D 996500000418 COVER(JACK),VR799/55
501D 996500000417 COVER(JACK),VR899/55
505 996500000461 DRUM SUB ASSY
505A 996500000462 UPPER DRUM ASSY
505B 482246210924 CAP
505C 482253212804 WASHER
505D 482253212803 COLLAR ASSY
505E 482226511367 CONTACT
505F 482249211666 COMPRESSION SPRING
505G 482246612015 FPC PLATE
506 482236210293 ROTOR ASSY
508 482236210294 STATOR ASSY
518 482252811247 CLEANER ASSY
WIRE
WR1 482232012426 FFC WIRE,DRUM CN3001
WR2 482232012468 E-CARD WIRE,A/C HEAD
! ... Safety component, use only this type 5-2
5.3 MECHANISM ASSEMBLY
5-3 ! ... Safety component, use only this type
3. MECHANISM ASSEMBLY 79 482253213037 T.ARM BEARING
80 482240211336 MAIN BRAKE ASSY (SUPPLY)
2 482253510317 ADJUST PIN,X2 81 482240211044 MAIN BRAKE ASSY (TAKE UP)
5 482240211363 GUIDE POLE GUARD 82 482249211691 TENSION SPRING
6 482224910558 FULL ERASE HEAD 83 482240211055 SUB BRAKE ASSY(TAKE UP)
7 482246311208 GUIDE POLE(SUPPLY) 84 482249211633 TENSION SPRING
10 482246410486 TENSION STUD BASE 85 482253510644 CAPSTAN BRAKE ASSY
11 482253510649 TENSION STUD 86 996500000337 CAPSTAN MOTOR
12 482240211359 UV CATCHER(SUPPLY) 88 482235810274 BELT,CAPSTAN MOTOR
13 482240211361 UV CATCHER ASSY(TAKE UP) 89 482240211158 IDLER ARM ASSY
15 482253510568 LOADING ARM GEAR SHAFT 90 482253213041 SLIT WASHER
18 482240211063 LOADING ARM GEAR(SUPPLY) 91 482252210764 CLUTCH UNIT
19 482249211636 TORSION ARM 92 482253212326 SLIT WASHER
20 482253510566 PIN 93 482252210765 CLUTCH GEAR 1
21 482240211035 POLE BASE ASSY(SUPPLY) 94 482252210766 DIRECT GEAR
23 482240211062 LOADING ARM GEAR(TAKE UP) 95 482249211764 COMPRESSION SPRING
24 482249211763 TORSION ARM 96 482253213041 SLIT WASHER
25 482253510566 PIN 98 WASHER,D.GEAR
26 482240211036 POLE BASE ASSY(TAKE UP) 99 482249211765 COMPRESSION SPRING
31 482246311197 ROTARY ENCODER GUIDE 100 482240211337 CHANGE LEVER ASSY
32 482240211335 BRAKE LEVER 101 482249211766 COMPRESSION SPRING
35 482246611931 CONTROL PLATE GUIDE 102 482240211054 IDLER LEVER
37 482240211046 TAKE UP LEVER 103 482252811338 REEL DISK (SUPPLY)
38 482249211631 TENSION SPRING 104 482252811339 REEL DISK (TAKE-UP)
39 482240211047 T.UP HEAD 106 482227310349 ROTARY ENCODER
40 482246311196 LID GUIDE 108 482253510565 REEL SHAFT,X2
43 482240211133 PINCH ROLLER ARM ASSY 110 482252210698 CASSETTE GEAR
45 482252811348 PINCH ROLLER SHEET2 111 482252210704 LIMIT GEAR(1)
46 482249211634 TORSION SPRING 112 482252210705 LIMIT GEAR(2)
47 482240211057 P.LEVER ASSY 113 482249211674 TORSION SPRING
48 482253213042 SLIT WASHER 114 482252210703 RELAY GEAR
50 482240211059 GUIDE ARM ASSY 115 482240211061 OPENER GUIDE
51 482249211635 TENSION SPRING 117 482253212326 SLIT WASHER,X2
52 482224910557 AC HEAD 118 482252210702 DRIVE GEAR
53 482246410456 HEAD BASE 119 482240211064 DRIVE ARM
54 482249211671 COMPRESSION SPRING 120 482249211673 TORSION SPRING
55 482249211672 COMPRESSION SPRING 121 482240211159 SIDE HOLDER(L)
58 482236111095 LOADING MOTOR 122 482240211338 SIDE HOLDER(R)
60 482252881557 MOTOR PULLEY 123 482240211129 LOCK LEVER(L)
61 482246311198 MOTOR GUIDE 124 482240211131 LOCK LEVER(R)
63 482235810204 BELT,LOADING MOTOR 125 482249211664 TORSION SPRING(L)
64 482252811256 CONTROL CAM 126 482249211665 TORSION SPRING(R)
65 482253211784 SLIT WASHER 127 482225610469 CASSETTE HOLDER
66 482252210697 WORM GEAR 128 482246311206 GUIDE RAIL
67 482240211049 LINK LEVER ASSY 129 482240211127 REC SAFETY LEVER
68 482253211784 SLIT WASHER 130 482249211668 TENSION SPRING
71 482246612244 CONTROL PLATE 131 482246011144 TOP GUIDE
72 482240211052 CTL BRACKET(1) 134 482249211785 TENSION SPRING
74 482240211043 TENSION ARM ASSY 135 482249211786 TENSION SPRING
76 482249211629 TENSION SPRING 136 482252811349 ROLLER CAM ASSY
77 482240211056 TENSION BRAKE ASSY 138 482249211787 TORSION SPRING,OPENER
78 482253510317 ADJUST PIN 151 482240211102 DOOR OPENER
! ... Safety component, use only this type 5-4
Practical Excercise V12 deck
Mechanic Deck disassemble and assemble.
Disassemble Deck.
For disassembling the deck preform the next procedure.
Sequence Item Parts Name Personal remark
01 131 Top Guide
02 136 Roller Cam Assy
03 128 Guide Rail
04 117 Slit Washer
05 116 Cassette Holder Bracket
06 115 Opener Guide
07 114 Relay Gear
08 111 Limit Gear
09 127 Cassette Holder
10 118 Drive Gear
11 119 Drive Arm (Flip Deck Over)
12 88 Belt
13 92 Slit Washer
14 91 Clutch Unit
15 106 Rotary Encoder
16 68 Slit Washers
17 67 Link Lever Assy
18 64 Control Cam
1
Practical Excercise V12 deck
19 110 Cassette gear
20 100 Change Lever
A Spring is untherneath
21 72 control bracket
22 71 control plate.
23 20 srews
24 18 Loading Arm Gear
25 51 Tension Spring
26 50 Guide Arm Assy
27 84 Tension Spring
28 83 Sub Break Assy
29 104 Reel Disk (T.U)
Watch out for washer
30 77 Tension Break Assy
31 103 Reel Disk (supply)
Watch out for washer
32 102 Idler Lever
33 89 Idler Arm Assy
34 48 Slit Washer
35 45 Pinch Roller Sheet
36 43 Pinch roller Arm Assy
2
Practical Excercise V12 deck
P l e as
e
H E LP
me
3
Practical Excercise V12 deck
Re-assemble deck.
For re-assemble back the mechanism perform the procedure of disassemble in reverse order.
Re-assembling must be done in eject position.
Sequence Item Parts Name
36 43 Pinch roller Arm Assy
35 45 Pinch Roller Sheet
34 48 Slit Washer
33 89 Idler Arm Assy
32 102 Idler Lever
31 103 Reel Disk (supply) Watch
out for washer
30 77 Tension Break Assy
29 104 Reel Disk (T.U) Watch out
for washer
28 83 Sub Break Assy
27 84 Tension Spring
26 50 Guide Arm Assy
25 51 Tension Spring
Figure 1
24 18 Loading Arm Gear
see figure 1.
23 20 srews
4
Practical Excercise V12 deck
22 71 Control Plate
By replacing the control
plate take care of the items
as shown in the figures 2-5.
Figure 2
Figure 3
5
Practical Excercise V12 deck
E
Figure 5
76
Figure 4
6
Practical Excercise V12 deck
21 72 control bracket
20 100 Change Lever
(First put in the spring
underneath)
19 110 Cassette gear
18 64 Control Cam
See figures 6-7
Figure 7
Figure 6
7
Practical Excercise V12 deck
17 67 Link Lever Assy
Check if the Control Plate is
on position E (see figure 6)
16 68 Slit Washers
15 106 Rotary Encoder Register
See figure 8 marks
14 91 Clutch Unit
13 92 Slit Washer
12 88 Belt
11 119 Drive Arm Figure 8
Flip Deck Over
10 118 Drive Gear
8
Practical Excercise V12 deck
For the next three items see figures 9, 10.
09 127 Cassette Holder
08 111 Limit Gear
07 114 Relay Gear
Figure 9
Figure 10
9
Practical Excercise V12 deck
06 115 Opener Guide
05 116 Cassette Holder Bracket
04 117 Slit Washer
03 128 Guide Rail
02 136 Roller Cam Assy
01 131 Top Guide
