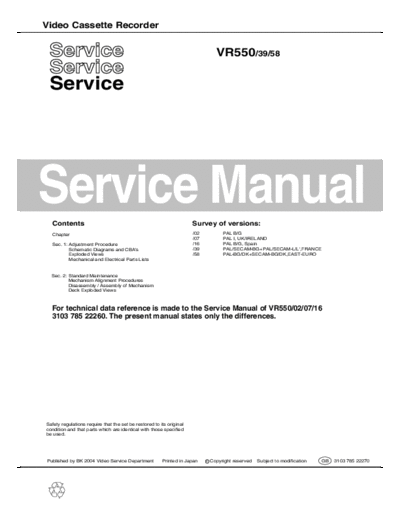

Image preview - the first page of the document
vr550_39_58


>> Download vr550_39_58 documenatation <<

Text preview - extract from the document
Video Cassette Recorder


 Service                                                                        VR550/39/58
 Service
 Service




Service Manual
  Contents                                                            Survey of versions:
  Chapter                                                             /02          PAL B/G
                                                                      /07          PAL I, UK/IRELAND
  Sec. 1: Adjustment Procedure                                        /16          PAL B/G, Spain
          Schematic Diagrams and CBA's                                /39          PAL/SECAM-BG+PAL/SECAM-L/L',FRANCE
          Exploded Views                                              /58          PAL-BG/DK+SECAM-BG/DK,EAST-EURO
          Mechanical and Electrical Parts Lists


  Sec. 2: Standard Maintenance
          Mechanism Alignment Procedures
          Disassembly / Assembly of Mechanism
          Deck Exploded Views



  For technical data reference is made to the Service Manual of VR550/02/07/16
  3103 785 22260. The present manual states only the differences.




Safety regulations require that the set be restored to its original
condition and that parts which are identical with those specified
be used.




Published by BK 2004 Video Service Department           Printed in Japan    c Copyright reserved   Subject to modification   GB   3103 785 22270
           OPERATING CONTROLS AND FUNCTIONS
[ VR550/ (39, 58) ]


             The remote control


                                                                        Buttons for VCR feature only
                       REC                    STANDBY/ON




                                                                 REC         To record the TV channel selected at this moment.
                   1                  2                3
                                                               STANDBY/ON           To switch off or on, interrupt menu function.
                   4                  5                6
                                                                0..9 Press to select channels at VCR.
                   7                  8                9
                                                                 P+ P
