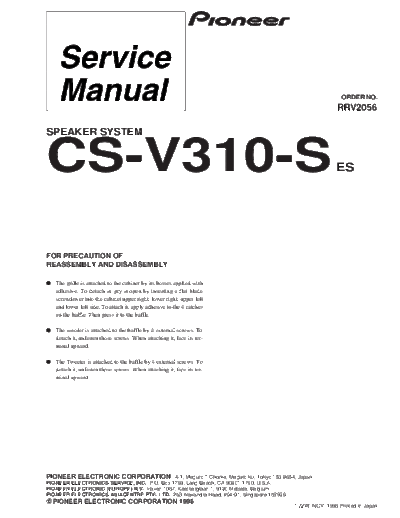

Image preview - the first page of the document
>> Download CS-V310-S documenatation <<
Text preview - extract from the document
ORDER NO.
RRV2056
SPEAKER SYSTEM
CS-V310-S ES
FOR PRECAUTION OF
REASSEMBLY AND DISASSEMBLY
The grille is attached to the cabinet by its bosses applied with
adhesive. To detach it, pry it open by inserting a flat blade
screwdriver into the cabinet upper right, lower right, upper left
and lower left side. To attach it, apply adhesive to the 4 catches
on the baffle. Then press it to the baffle.
The woofer is attached to the baffle by 4 external screws. To
detach it, unfasten those screws. When attaching it, face its ter-
minal upward.
The Tweeter is attached to the baffle by 4 external screws. To
detach it, unfasten those screws. When attaching it, face its ter-
minal upward.
PIONEER ELECTRONIC CORPORATION 4-1, Meguro 1-Chome, Meguro-ku, Tokyo 153-8654, Japan
PIONEER ELECTRONICS SERVICE, INC. P.O. Box 1760, Long Beach, CA 90801-1760, U.S.A.
PIONEER ELECTRONIC (EUROPE) N.V. Haven 1087, Keetberglaan 1, 9120 Melsele, Belgium
PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 253 Alexandra Road, #04-01, Singapore 159936
PIONEER ELECTRONIC CORPORATION 1998
T-ZZW NOV. 1998 Printed in Japan
CS-V310-S
PARTS LIST
NOTES: Parts marked by "NSP" are generally unavailable because they are not in our Master Spare Parts List.
The mark found on some component parts indicates the importance of the safety factor of the part.
Therefore, when replacing, be sure to use parts of identical designation.
Mark No. Description Part No. Mark No. Description Part No.
NSP Cabinet (L) SMM1844 NSP Duct ASSY SMR1301
NSP Cabinet (R) SMM1845 NSP Damper SER1254
NSP Duct 50 SMR1297
Grille (L) SMG1654
Screw BPZ40P160FMC NSP Acoustic Absorbent SMV1935
NSP Logo 100 SAM1463 Speaker 20 (Woofer) SWB1040
NSP Cosmetic Sash SAP1110 Speaker 77 (Tweeter) SWS1029
NSP Grille Net SAS1453 NSP Screw (for Catch) SBA-102
NSP Ring SBG1003 Screw (for Speaker) SBA-122
NSP Grille Frame (A) SNK1837
NSP Cosmetic Baffle SNK2383
For Packing
Grille (R) SMG1655 NSP Accessories Set SME2906
Screw BPZ40P160FMC NSP Hanging Hook Set SEA1446
NSP Logo 100 SAM1463 NSP Screw Bag Set SEA1265
NSP Cosmetic Sash SAP1110 Bind Tapping Screw 5 BYC50P200FZB
NSP Grille Net SAS1453 (for Safety Belt)
NSP Ring SBG1003 NSP Screw Bag Set SEA1266
NSP Grille Frame (A) SNK1837 Screw BYC40P200FZB
NSP Cosmetic Baffle SNK2383 (for Wall Hanging fixture)
Safety Belt SEW1019
Network ASSY SWN1593 NSP Packing Bag SHL-338
NSP Catch SEB-075 Hanging Hook SNB-393
NSP Packing (for Tweeter) SEE1062 NSP Polyethylene Bag S2 SHL-033
NSP Input Terminal SKX1050 Operating Instructions SRD1212
(English/ Chinese)
NSP Stamped Model Label (L) SME2904
NSP Model Label (L) SAN2691 Protector SHB1037
NSP Stamped Model Label (R) SME2905 Protection Mat S5 SHC1208
NSP Model Label (R) SAN2692 Center Divider SHD1027
Packing Case SHG2189
SCHEMATIC DIAGRAM
Network ASSY (SWN1593)
Br1
Woofer
Red Blue
1.4A
INPUT
Black Br2 White
White
