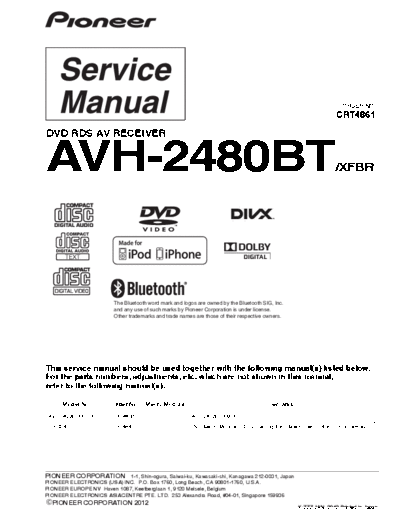

Image preview - the first page of the document
>> Download pioneer_avh-2480bt_crt4861_car_dvd_supplement documenatation <<
Text preview - extract from the document
ORDER NO.
CRT4861
DVD RDS AV RECEIVER
AVH-2480BT /XFBR
The Bluetooth word mark and logos are owned by the Bluetooth SIG, Inc.
and any use of such marks by Pioneer Corporation is under license.
Other trademarks and trade names are those of their respective owners.
This service manual should be used together with the following manual(s) listed below.
For the parts numbers, adjustments, etc. which are not shown in this manual,
refer to the following manual(s).
Model No. Order No. Mech. Module Remarks
AVH-3400BH/XUUC CRT4838 AVH-2450BT/XMRC
CX-3283 CRT4843 LS2 DVD Mech. Module : Circuit Descriptions, Mech. Descriptions, Disassembly
PIONEER CORPORATION 1-1, Shin-ogura, Saiwai-ku, Kawasaki-shi, Kanagawa 212-0031, Japan
PIONEER ELECTRONICS (USA) INC. P.O. Box 1760, Long Beach, CA 90801-1760, U.S.A.
PIONEER EUROPE NV Haven 1087, Keetberglaan 1, 9120 Melsele, Belgium
PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 253 Alexandra Road, #04-01, Singapore 159936
PIONEER CORPORATION 2012
K-ZZZ JAN. 2012 Printed in Japan
1 2 3 4
EXPLODED VIEWS AND PARTS LIST
PACKING(1)(Page 78)
PACKING(1) SECTION PARTS LIST
A
Mark No. Description AVH-2450BT/XMRC AVH-2480BT/XFBR
1 Cord Assy CDP1435 CDP1436
12-1 Owner's Manual CRB3733 CRB3740(Portuguese(B))
12-2 Owner's Manual CRB3734 Not used
* 12-4 Service Network Not used CRY1227
13 Unit Box CHG7893 CHG7697
14 Contain Box CHL7893 CHL7353
B
EXTERIOR(1)(Page 82)
EXTERIOR(1) SECTION PARTS LIST
Mark No. Description AVH-2450BT/XMRC AVH-2480BT/XFBR
2 Service Unit (Monitor) CXX4551 CXX4177
19 Grille CNU1745 CNU1747
EXTERIOR(2)(Page 84)
EXTERIOR(2) SECTION PARTS LIST
Mark No. Description AVH-2450BT/XMRC AVH-2480BT/XFBR
C
4 Cord Assy CDP1435 CDP1436
18 Spacer Not used CNN4042
How to put the spacer onto the DVD Core Unit.
ID
Put the spacer at the corner of the IC.
D
After putting the spacer, press it by finger only on the IC surface.
Spacer
IC
E
Do not press the spacer after the
Finger mechanism touched to the top case.
F
AVH-2480BT/XFBR
2
1 2 3 4
5 6 7 8
EXTERIOR(3)(Page 86)
EXTERIOR(3) SECTION PARTS LIST
Mark No. Description AVH-2450BT/XMRC AVH-2480BT/XFBR
18 Service Unit (Mother I/F) CXX4159 CXX4163 A
B
ELECTRICAL PARTS LIST(Page 142)
SERVICE UNIT(Mother I/F)
Circuit Symbol and No. Part Name AVH-2450BT/XMRC AVH-2480BT/XFBR
D603 Diode RB501V-40 RB501VM-40
L1411 Inductor Not used LCYB68NJ1005
P451 Poly Switch MINISMDC075F/24 MINISMDC075F/24-2
P501 Poly Switch MINISMDC075F/24 MINISMDC075F/24-2
P533 Poly Switch MINISMDC075F/24 MINISMDC075F/24-2
C
JA501 Pin Jack XKB7001 YKB5016
R670 Not used RS1/16SS473J
R671 RS1/16SS473J Not used
R1406 RS1/16SS0R0J Not used
C1410 Not used CCSSCK2R0C50
C1422 Not used CCSSCJ3R0C50
C1431 Not used CCSSCH220J50
D
C1437 Not used CCSSCH100D50
C1438 Not used CCSSCH100D50
C1447 Not used CCSSCH220J50
C1456 Not used CCSRCH220J50
C1463 Not used CCSSCH220J50
C1464 Not used CCSSCH220J50
SERVICE UNIT(Monitor) E
Circuit Symbol and No. Part Name AVH-2450BT/XMRC AVH-2480BT/XFBR
IC5401 Service Flash ROM Unit CXX4344 CXX4206
The mounting positions of the additional parts are described in the circuit diagram and PCB diagram of the parent manual.
F
AVH-2480BT/XFBR
3
5 6 7 8
