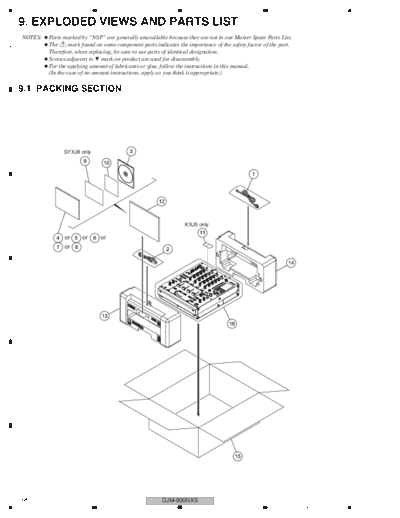

Image preview - the first page of the document
>> Download DJM-900NXS_parts documenatation <<
Text preview - extract from the document
1 2 3 4
9. EXPLODED VIEWS AND PARTS LIST
NOTES: - Parts marked by "NSP" are generally unavailable because they are not in our Master Spare Parts List.
A
- The > mark found on some component parts indicates the importance of the safety factor of the part.
Therefore, when replacing, be sure to use parts of identical designation.
- Screws adjacent to b mark on product are used for disassembly.
- For the applying amount of lubricants or glue, follow the instructions in this manual.
(In the case of no amount instructions, apply as you think it appropriate.)
9.1 PACKING SECTION
B
SYXJ8 only
C
KXJ5 only
or or or
or
D
E
F
88 DJM-900NXS
1 2 3 4
5 6 7 8
(1) PACKING SECTION PARTS LIST
Mark No. Description Part No.
> 1 Power Cord See Contrast table (2)
2 USB Cable DDE1128 A
3 CD-ROM DXX2619
4 Operating Instructions See Contrast table (2)
5 Operating Instructions See Contrast table (2)
6 Operating Instructions See Contrast table (2)
7 Operating Instructions See Contrast table (2)
8 Operating Instructions See Contrast table (2)
NSP 9 Warranty Card (WY) See Contrast table (2)
NSP 10 Flier See Contrast table (2)
B
NSP 11 Recycle Label (M) See Contrast table (2)
NSP 12 Polyethylene Bag AHG7117
13 Pad A DHA1854
14 Pad B DHA1855
15 Packing Case See Contrast table (2)
16 Packing Sheet RHC1023
(2) CONTRAST TABLE C
DJM-900NXS/SYXJ8, UXJCB, LXJ, KXJ5 and XJCN5 are constructed the same except for the following:
DJM-900NXS DJM-900NXS DJM-900NXS DJM-900NXS DJM-900NXS
Mark No. Symbol and Description
/SYXJ8 /UXJCB /LXJ /KXJ5 /XJCN5
> 1 Power Cord ADG7062 DDG1108 ADG7062 XDG3066 ADG7105
4 Operating Instructions DRB1533 Not used Not used Not used Not used
(En, Fr, De, It, Nl, Es, Ru)
5 Operating Instructions (En) Not used DRB1542 Not used Not used Not used
6 Operating Instructions (En, Es, Zhtw) Not used Not used DRB1543 Not used Not used
7 Operating Instructions (Ko) Not used Not used Not used DRB1545 Not used
8 Operating Instructions (En, Zhcn) Not used Not used Not used Not used DRB1544
D
NSP 9 Warranty Card (WY) ARY7107 Not used Not used Not used Not used
NSP 10 Flier DRH1108 DRH1109 DRH1109 DRH1107 DRH1107
NSP 11 Recycle Label (M) Not used Not used Not used DRW2307 Not used
15 Packing Case DHG2937 DHG2977 DHG2978 DHG2981 DHG2980
E
F
DJM-900NXS 89
5 6 7 8
1 2 3 4
9.2 EXTERIOR SECION
A Refer to
NON-CONTACT
CONTACT SIDE
"9.4 CONTROL PANEL SECTION (1/2)" .
SIDE
UXJCB
only
B
B
H
B
A
C
C
D
E
F
UXJCB
only
A
UXJCB, LXJ, KXJ5
only
D
A
B
I
E
UXJCB
only
F
UXJCB
only
Refer to
"9.3 BOTTOM SECTION" .
90 DJM-900NXS
1 2 3 4
5 6 7 8
(1) EXTERIOR SECTION PARTS LIST
Mark No. Description Part No. Mark No. Description Part No.
1 INPUT Assy DWX3193 26 Rotary SW Knob S (B) DAA1178
2 MIC1 Assy DWX3207 27 Rotary SW Knob S (C) DAA1204 A
3 TRM1 Assy DWX3203 NSP 28 Caution Label See Contrast table (2)
4 TRM2 Assy DWX3204 NSP 29 Label See Contrast table (2)
5 TRM3 Assy DWX3205 NSP 30 Name Label See Contrast table (2)
