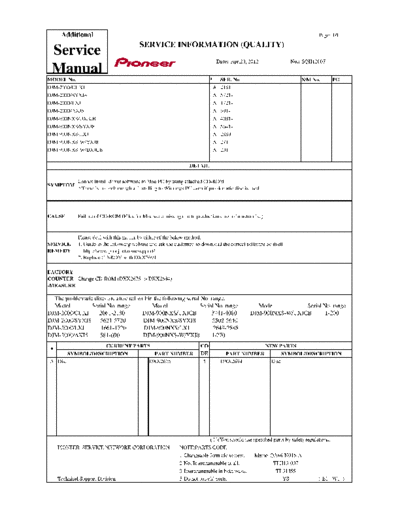

Image preview - the first page of the document
>> Download SQH12007 documenatation <<
Text preview - extract from the document
Additional Page: 1/1
SERVICE INFORMATION (QUALITY)
Service
Date: Apr.20, 2012 No.: SQH12007
Manual
MODEL No. * SER. No S/M No. PG
DJM-2000/CUXJ A 2181-
DJM-2000/SYXJ8 A 5721-
DJM-2000/LXJ A 1721-
DJM-2000/AXJ5 A 691-
DJM-900NXS/UXJCB A 4081-
DJM-900NXS/SYXJ8 A 5641-
DJM-900NXS/LXJ A 2889-
DJM-900NXS-W/YXJ8 A 271-
DJM-900NXS-W/UXJCB A 201-
DETAIL
Cannot install driver software to Mac PC by using attached CD-ROM
SYMPTOM
* There is no problem when installing to Windows PC even if problematic disc is used.
CAUSE Failure of CD-ROM (Files for Mac were missing due to production error of master disc)
Please deal with this matter by either of the below method.
SERVICE 1. Guide to the following website and ask the customer to download the correct software by itself
REMEDY http://www.prodjnet.com/support/
2. Replace CD-ROM with DXX2694
FACTORY
COUNTER Change CD-ROM (DXX2675 -> DXX2694)
-MEASURE
The problematic discs are attached within the following serial No. range.
Model Serial No. range Model Serial No. range Model Serial No. range
DJM-2000/CUXJ 2061-2180 DJM-900NXS/UXJCB 3741-4080 DJM-900NXS-W/UXJCB 1-200
DJM-2000/SYXJ8 5621-5720 DJM-900NXS/SYXJ8 5502-5640
DJM-2000/LXJ 1661-1720 DJM-900NXS/LXJ 2649-2888
DJM-2000/AXJ5 581-690 DJM-900NXS-W/YXJ8 1-270
CURRENT PARTS CO NEW PARTS
*
SYMBOL/DESCRIPTION PART NUMBER DE PART NUMBER SYMBOL/DESCRIPTION
A Disc DXX2675 5 DXX2694 Disc
( ! ):You should use specified parts by safety regulations.
PIONEER SERVICE NETWORK CORPORATION NOTE:PARTS CODE
1:Changeable form old to new. Memo: QA66-N016-A
2:Not Interchangeable at all. TPH13-007
3:Interchangeable in both ways. TI-31455
Technical Support Division 5:Do not use old parts. YS ( E1 W1 )
