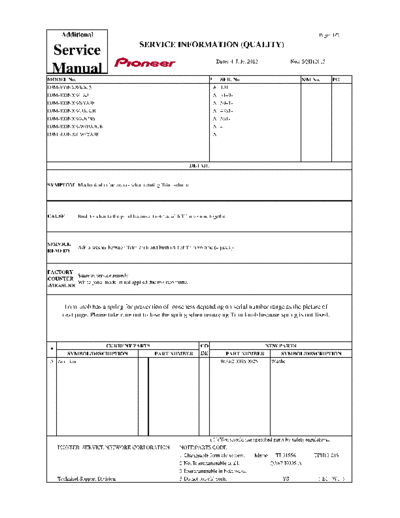

Image preview - the first page of the document



>> Download SQH12013 documenatation <<

Text preview - extract from the document

      Additional                                                                                                              Page: 1/2
                                           SERVICE INFORMATION (QUALITY)
 Service
                                                                               Date: 4. July, 2012               No.: SQH12013
 Manual
MODEL No.                                                                    *    SER. No                             S/M No.       PG
DJM-900NXS/KXJ5                                                               A   101-
DJM-900NXS/LXJ                                                                A   3149-
DJM-900NXS/SYXJ8                                                              A   5941-
DJM-900NXS/UXJCB                                                              A   4361-
DJM-900NXS/XJCN5                                                              A   561-
DJM-900NXS-W/UXJCB                                                            A   -
DJM-900NXS-W/YXJ8                                                             A   -




                                                                  DETAIL


SYMPTOM Mechanical noise occurs when rotating Trim volume




CAUSE         Bush touches to the panel because it rotates with Trim volume together.




SERVICE
              Add a washer between Trim knob and bush (All of Trim volume (4 pcs.) )
REMEDY



FACTORY
         Same as service remedy
COUNTER
         White panel model is not applied due to discontinue.
-MEASURE



        Trim knob has a spring for prevention of looseness depending on serial number range as the picture of
       next page. Please take care not to lose the spring when removing Trim knob because spring is not fixed.



                  CURRENT PARTS                                         CO                     NEW PARTS
 *
       SYMBOL/DESCRIPTION       PART NUMBER                             DE         PART NUMBER      SYMBOL/DESCRIPTION
 A Addition                                                                       WA62D095D025   Washer




                                                                            ( ! ):You should use specified parts by safety regulations.
     PIONEER SERVICE NETWORK CORPORATION                      NOTE:PARTS CODE
                                                              1:Changeable form old to new.       Memo: TI-31556               TPH13-019
                                                              2:Not Interchangeable at all.              QA67-N005-A
                                                              3:Interchangeable in both ways.
     Technical Support Division                               5:Do not use old parts.                          YS                ( E1 W1 )
                                                            SQH12013    page: 2/2




         Spring
                                        Washer
   For prevention of
looseness of Trim kno

          [Before inserting a washer]      [After inserting a washer]
