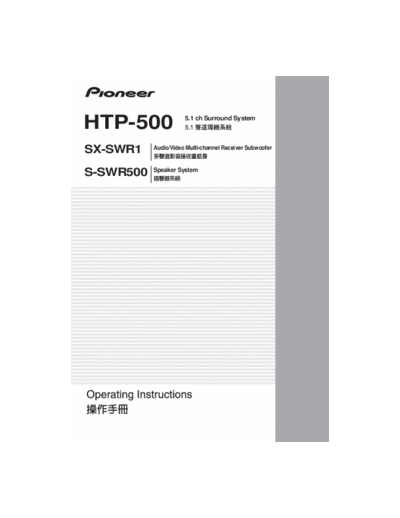

Image preview - the first page of the document
>> Download product276-141-download documenatation <<
Text preview - extract from the document
HTP-500 5.1 ch Surround System
SX-SWR1 Audio/Video Multi-channel Receiver Subwoofer
S-SWR500 Speaker System
IMPORTANT
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
The lightning flash with arrowhead symbol, CAUTION: The exclamation point within an equilateral
within an equilateral triangle, is intended to TO PREVENT THE RISK OF ELECTRIC triangle is intended to alert the user to the
alert the user to the presence of uninsulated SHOCK, DO NOT REMOVE COVER (OR presence of important operating and
"dangerous voltage" within the product's BACK). NO USER-SERVICEABLE PARTS maintenance (servicing) instructions in the
enclosure that may be of sufficient INSIDE. REFER SERVICING TO QUALIFIED literature accompanying the appliance.
magnitude to constitute a risk of electric SERVICE PERSONNEL.
shock to persons.
D3-4-2-1-1_A1_En
WARNING POWER-CORD CAUTION
This equipment is not waterproof. To prevent a fire or Handle the power cord by the plug. Do not pull out the
shock hazard, do not place any container filled with plug by tugging the cord and never touch the power
liquid near this equipment (such as a vase or flower cord when your hands are wet as this could cause a
pot) or expose it to dripping, splashing, rain or short circuit or electric shock. Do not place the unit, a
moisture. piece of furniture, etc., on the power cord, or pinch the
D3-4-2-1-3_A1_En cord. Never make a knot in the cord or tie it with other
cords. The power cords should be routed such that they
WARNING are not likely to be stepped on. A damaged power cord
Before plugging in for the first time, read the following can cause a fire or give you an electrical shock. Check
section carefully. the power cord once in a while. When you find it
The voltage of the available power supply differs damaged, ask your nearest PIONEER authorized
according to country or region. Be sure that the service center or your dealer for a replacement.
S002*_A1_En
power supply voltage of the area where this unit
will be used meets the required voltage (e.g., 230 V
or 120 V) written on the rear panel. If the AC plug of this unit does not match the AC
D3-4-2-1-4*_A1_En
outlet you want to use, the plug must be removed
and appropriate one fitted. Replacement and
WARNING mounting of an AC plug on the power supply cord of
To prevent a fire hazard, do not place any naked flame this unit should be performed only by qualified
sources (such as a lighted candle) on the equipment. service personnel. If connected to an AC outlet, the
D3-4-2-1-7a_A1_En cut-off plug can cause severe electrical shock. Make
sure it is properly disposed of after removal.
VENTILATION CAUTION The equipment should be disconnected by removing
When installing this unit, make sure to leave space the mains plug from the wall socket when left unused
around the unit for ventilation to improve heat radiation for a long period of time (for example, when on
(at least 10 cm at top, 10 cm at rear, and 10 cm at each vacation).
D3-4-2-2-1a_A1_En
side).
WARNING
Slots and openings in the cabinet are provided for CAUTION
ventilation to ensure reliable operation of the product, The STANDBY/ON switch on this unit will not
and to protect it from overheating. To prevent fire completely shut off all power from the AC outlet.
hazard, the openings should never be blocked or Since the power cord serves as the main disconnect
covered with items (such as newspapers, table-cloths, device for the unit, you will need to unplug it from the
curtains) or by operating the equipment on thick carpet AC outlet to shut down all power. Therefore, make
or a bed. sure the unit has been installed so that the power
D3-4-2-1-7b*_A1_En cord can be easily unplugged from the AC outlet in
case of an accident. To avoid fire hazard, the power
cord should also be unplugged from the AC outlet
Operating Environment when left unused for a long period of time (for
Operating environment temperature and humidity: example, when on vacation).
