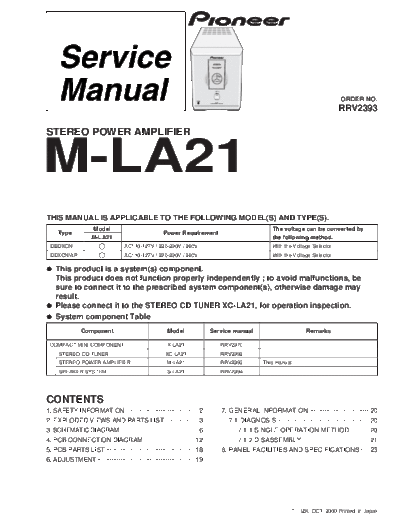

Image preview - the first page of the document
>> Download hfe_pioneer_m-la21_service_en documenatation <<
Text preview - extract from the document
DYNAMIC MODE
HIGH EFFICIENT
AMPLIFIER
POWER OUTPUT
DINAMIC
-- OFF _ ON
LA21
STEREO POWER AMPLIFIER
ORDER NO.
RRV2393
STEREO POWER AMPLIFIER
M-LA21
THIS MANUAL IS APPLICABLE TO THE FOLLOWING MODEL(S) AND TYPE(S).
Model The voltage can be converted by
Type Power Requirement
M-LA21 the following method.
DBDXCN AC110-127V / 220-230V / 240V With the Voltage Selector
DDXCN/AR AC110-127V / 220-230V / 240V With the Voltage Selector
