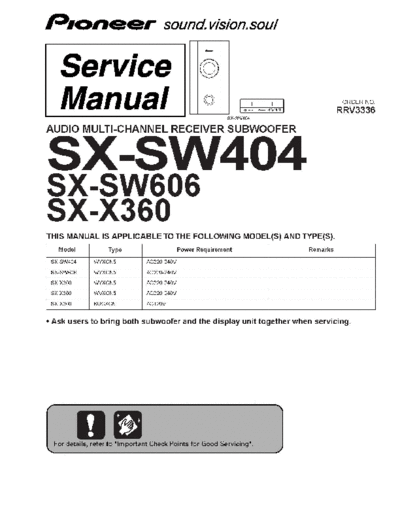

Image preview - the first page of the document



>> Download hfe_pioneer_sx-sw404_sw606_x360_service documenatation <<

Text preview - extract from the document

                 1                                            2                                  3                                  4

    SAFETY INFORMATION

A


    This service manual is intended for qualified service technicians; it is not meant for the casual
    do-it-yourselfer. Qualified technicians have the necessary test equipment and tools, and have been
    trained to properly and safely repair complex products such as those covered by this manual.
    Improperly performed repairs can adversely affect the safety and reliability of the product and may
    void the warranty. If you are not qualified to perform the repair of this product properly and safely, you
    should not risk trying to do so and refer the repair to a qualified service technician.
    WARNING
B   This product contains lead in solder and certain electrical parts contain chemicals which are known to the state of California to
    cause cancer, birth defects or other reproductive harm.
                                                                              Health & Safety Code Section 25249.6
