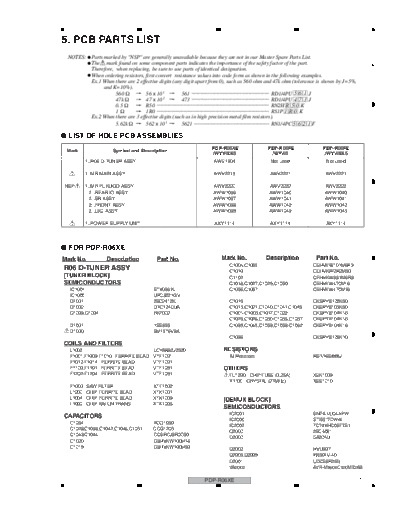

Image preview - the first page of the document
>> Download service documenatation <<
Text preview - extract from the document
5 6 7 8
5. PCB PARTS LIST
NOTES: Parts marked by "NSP" are generally unavailable because they are not in our Master Spare Parts List.
The mark found on some component parts indicates the importance of the safety factor of the part. A
Therefore, when replacing, be sure to use parts of identical designation.
When ordering resistors, first convert resistance values into code form as shown in the following examples.
Ex.1 When there are 2 effective digits (any digit apart from 0), such as 560 ohm and 47k ohm (tolerance is shown by J=5%,
and K=10%).
560 56 x 10 1 561 RD1/4PU 5 6 1 J
47k 47 x 10 3 473 RD1/4PU 4 7 3 J
0.5 R50 RN2H R 5 0 K
1 1R0 RS1P 1 R 0 K
Ex.2 When there are 3 effective digits (such as in high precision metal film resistors).
5.62k 562 x 10 1 5621 RN1/4PC 5 6 2 1 F
7 LIST OF HOLE PCB ASSEMBLIES
B
PDP-R06XE PDP-R06FE PDP-R06FE
Mark Symbol and Description
/WYVIXK5 /WYVI5 /WYVIXK5
1..R06 D-TUNER ASSY AWE1304 Not used Not used
> 1..MR MAIN ASSY AWV2219 AWV2221 AWV2221
NSP> 1..MR FUKUGO ASSY AWV2220 AWV2222 AWV2222
2..REAR IO ASSY AWW1036 AWW1040 AWW1040
2..SR ASSY AWW1037 AWW1041 AWW1041
2..FRONT ASSY AWW1038 AWW1042 AWW1042
2..LED ASSY AWW1039 AWW1043 AWW1043
C
> 1..POWER SUPPLY UNIT AXY1114 AXY1114 AXY1114
7 FOR PDP-R06XE
Mark No. Description Part No. Mark No. Description Part No.
C1004,C1055 CEHVKW101M6R3
R06 D-TUNER ASSY C1010 CEHVKW2R2M50
[TUNER BLOCK] C1102 CEHVKW331M6R3
SEMICONDUCTORS C1018,C1027,C1029,C1050 CEHVKW470M16
IC1001 STV0361L C1056,C1057 CEHVKW470M16
IC1000 UPC3221GV D
Q1001 2SC2412K C1015 CKSRYB102K50
Q1002 DTC124EUA C1013,C1021,C1040,C1041,C1045 CKSRYB103K50
Q1003,Q1004 RK7002 C1001-C1003,C1017,C1022 CKSRYB104K16
C1025,C1026,C1030-C1035,C1037 CKSRYB104K16
D1001 1SS355 C1039,C1049,C1053,C1058-C1062 CKSRYB104K16
> D1000 SM15T6V8A
C1036 CKSRYB105K10
COILS AND FILTERS
L1002 LCYAR82J2520 RESISTORS
F1001,F1003-F1010 FERRITE BEAD VTF1091 All Resistors RS1/16S###J
F1012-F1014 FERRITE BEAD VTF1091
F1100,F1101 FERRITE BEAD VTF1091 OTHERS
F1202-F1204 FERRITE BEAD VTF1091 > FU1200 CHIP FUSE (0.25A) XEK1003 E
X1100 CRYSTAL (27MHz) XSS1010
F1000 SAW FILTER XTF1002
L1200 CHIP FERRITE BEAD XTX1001
L1004 CHIP FERRITE BEAD XTX1003 [DEMUX BLOCK]
L1000 CHIP BALUN TRANS XTX1005
SEMICONDUCTORS
IC2001 SN74LVU04APW
CAPACITORS IC2000 STI5517DWAL
C1054 BCG1050 IC2002 TC74VHC08FTS1
C1028,C1038,C1042,C1046,C1051 CCG1205
Q2000 2SC4081
C1043,C1044 CCSRCJ3R0C50
D2000 DA204U
C1020 CEHVKW100M16
C1019 CEHVKW100M50
D2002 HVU307 F
D2005,D2009 RB501V-40
D2001 UDZS8R2(B)
VA2002 AVR-M1608C120MT2AB
PDP-R06XE 25
5 6 7 8
1 2 3 4
Mark No. Description Part No. Mark No. Description Part No.
COILS AND FILTERS CAPACITORS
F2000-F2003 FERRITE BEAD VTF1091 C4000,C4002 CCG1205
L2000 CHIP FERRITE BEAD XTX1003 C4010,C4011,C4042 CCSRCH101J50
A C4008,C4009 CCSRCH121J50
CAPACITORS C4007,C4013 CCSRCH220J50
C2014,C2016 CCSRCH100D50 C4019,C4102-C4104,C4108-C4113 CEHVKW100M16
C2000,C2026,C2030 CCSRCH101J50
C2009 CCSRCH330J50 C4004 CEHVKW2R2M50
C2011,C2012 CCSRCH390J50 C4012,C4022,C4023,C4029,C4039 CEHVKW470M16
C2007 CCSRCH471J50 C4006 CKSRYB102K50
C4001,C4014,C4032,C4033,C4038 CKSRYB103K50
C2032-C2034,C2036 CEHVKW470M16 C4040,C4041 CKSRYB105K10
C2008,C2017,C2020,C2021 CKSRYB102K50
C2013 CKSRYB105K10 C4003,C4005,C4017,C4018,C4021 CKSRYF104Z16
C2001 CKSRYB471K50 C4024,C4043,C4105-C4107 CKSRYF104Z16
C2002,C2003,C2005,C2006 CKSRYF104Z16
B
RESISTORS
C2018,C2019,C2022-C2025,C2028 CKSRYF104Z16 R4042,R4045,R4046 RS1/16S2000F
C2035,C2037-C2041,C2043-C2045 CKSRYF104Z16 Other Resistors RS1/16S###J
C2047,C2048 CKSRYF104Z16
C2015 CKSRYF105Z10 OTHERS
C2027,C2029,C2042,C2046 CKSRYF223Z50 CN4000 40P CONNECTOR AKM1217
JA4000 OPTICAL OUT MODULE GP1FM513TZ
C2004 CKSRYF474Z16 X4000 CRYSTAL (12.288MHz) XSS1006
RESISTORS
R2010,R2018,R2042 RAB4C103J [COMMON-INTERFACE BLOCK]
R2070,R2071 RAB4CQ220J SEMICONDUCTORS
C Other Resistors RS1/16S###J IC5001 CIMAXSP2L
IC5000 ST890CDR
OTHERS IC5002 TC74LCX245FTS1
X2001 CRYSTAL ASS1172 IC5003,IC5004 TC74LCX373FT
X2000 CRYSTAL (27MHz) BSS1112 Q5000 2SC4081
Q5001 DTA143EUA
[MEMORY BLOCK] Q5002 DTC124EUA
SEMICONDUCTORS
IC3000,IC3003 K4S281632F-UC75 CAPACITORS
C5005,C5100 CEHVKW470M16
COILS AND FILTERS C5001 CKSRYB105K10
L3005 CHIP FERRITE BEAD XTX1001 C5003,C5004,C5006,C5008-C5013 CKSRYF104Z16
D
L3003 CHIP FERRITE BEAD XTX1003
RESISTORS
CAPACITORS R5014,R5019,R5022,R5024,R5030 RAB4CQ470J
C3010 CEHVKW470M16 R5032,R5036-R5038,R5045-R5050 RAB4CQ470J
C3000,C3003,C3007,C3008,C3012 CKSRYF104Z16 Other Resistors RS1/16S###J
C3017,C3020-C3022 CKSRYF104Z16
C3001,C3002,C3004,C3014,C3015 CKSRYF223Z50 OTHERS
C3018,C3019,C3023,C3024 CKSRYF223Z50 CN5000 PCMCIA CONNECTOR XKP1003
RESISTORS
R3004-R3014 RAB4CQ470J [POWER BLOCK]
Other Resistors RS1/16S###J SEMICONDUCTORS
E
IC6002 BA05FP
IC6003 FPF2002
[AV BLOCK] IC6001 M5291FP
SEMICONDUCTORS IC6200 TC74LCX245FTS1
IC4000 CS4334-KS Q6006 2SB1188
IC4003 CS8406CZZ
IC4100 PCM1803DB Q6100 2SC4081
IC4002 RC4558D Q6003,Q6005,Q6010 DTA143EUA
IC4001 SN74LVU04APW Q6001,Q6009,Q6011,Q6200 DTC124EUA
Q4001,Q4002 2SC4081 Q6008 TPC8209
D6003,D6100-D6102 1SS355
COILS AND FILTERS
D6001 RSX201L-30
F F4000,F4100 CHIP FERRITE BEAD VTF1091
D6103 UDZS30(B)
26 PDP-R06XE
1 2 3 4
5 6 7 8
Mark No. Description Part No. Mark No. Description Part No.
COILS AND FILTERS OTHERS
L6000 LCYAR82J2520 CN4004 50P CONNECTOR AKM1201
F6000 CHIP FERRITE BEAD VTF1091 CN4003,CN4008,CN4010 AKM1233
L6001,L6100,L6101 XTH1001 12P FFC CONNECTOR A
CHIP INDUCTOR (33UH) CN4001 50P CONNECTOR AKM1236
CN4007,CN4009 AKM1274
CAPACITORS PH CONNECTOR 3P
C6027 CCSRCH101J50
C6010 CCSRCH331J50 CN4002 PH CONNECTOR 6P AKM1277
C6004 CEHVKW100M50 CN4005 40P CONNECTOR AKM1303
C6017,C6028,C6036,C6042,C6044 CEHVKW101M6R3
C6031 CEHVKW2R2M50
[REG BLOCK]
C6000,C6026,C6104-C6106 CEHVKW331M6R3 SEMICONDUCTORS
C6001,C6011,C6013-C6015,C6019 CEHVKW470M16 IC4210,IC4212 BD6522F
C6023,C6100 CEHVKW470M16 IC4208,IC4211 MM1661JH B
C6022 CKSRYB105K10 IC4202 NCP1117ST15
C6003,C6005,C6006,C6012,C6018 CKSRYF104Z16 IC4209 NCP1117ST18
IC4201 PQ025ENA1ZPH
C6020,C6021,C6025,C6029,C6030 CKSRYF104Z16
C6033,C6038,C6102,C6200 CKSRYF104Z16 IC4204,IC4205 PQ033ENA1ZPH
C6002,C6035 CKSRYF223Z50 IC4206 PQ050DNA1ZPH
C6008,C6016 CKSRYF474Z16 IC4203 PQ090DNA1ZPH
Q4201,Q4203 DTC124EUA
RESISTORS D4201-D4206,D4208,D4209,D4211 1SS355
R6031 RAB4C221J
R6012-R6014 RAB4C2R2J COILS AND FILTERS
R6204,R6205 RAB4CQ101J L4201,L4202 INDUCTOR BTH1111
Other Resistors RS1/16S###J > L4203-L4206 CHIP FERRITE BEAD BTX1042 C
> F4201-F4205,F4207 EMI FILTER CCG1162
OTHERS
CN6003 50P CONNECTOR AKM1236 CAPACITORS
CN6000 PHP CONNECTOR 12P AKM1298 C4201,C4206,C4209,C4215,C4218 ACG7046
(10/6.3V)
C4220,C4233,C4235,C4240,C4250 ACG7046
[PC CARD BLOCK] (10/6.3V)
SEMICONDUCTORS C4253,C4257,C4260,C4263 ACG7046
IC3002 XYW1005 (10/6.3V)
OTHERS C4213 (100UF/16V) ACH1394
16-18 SCREW ABZ30P060FTC C4210,C4244,C4269 ACH1429
C4273 CCSSCH101J50 D
11 PCMCIA EJECTOR ANG2673
12-15 SCREW PMZ20P100FNI C4205,C4216,C4219,C4221,C4222 CEHVKW101M6R3
9 TOP CAN XNG1002 C4224,C4228,C4238,C4264,C4267 CEHVKW101M6R3
C4226 CEHVKW220M16
C4214 CKSRYB104K16
C4203,C4217,C4223 CKSRYB105K10
MR MAIN ASSY C4229,C4237,C4252 CKSSYB104K10
OTHERS C4232,C4234 CKSSYB471K50
FRONT END (EU) AXF1149
DD CON UNIT AXY1117 C4202,C4204,C4207,C4212,C4227 CKSSYF104Z16
C4236,C4251,C4261,C4262,C4268 CKSSYF104Z16
C4211,C4225,C4256 DCH1165
E
[BOARD IF BLOCK]
SEMICONDUCTORS RESISTORS
Q4003,Q4004 2SA1586 All Resistors RS1/16S###J
Q4001 DTA124EUA
Q4002 TPC6104
D4001-D4005 1SS355 [TUNER BLOCK]
SEMICONDUCTORS
CAPACITORS IC4401 MSP3417G
C4002 CKSRYB105K10 Q4404 2SA1586
C4003,C4004 CKSSYB104K10 Q4401,Q4402 2SC4116
Q4414 DTA124EUA
RESISTORS Q4410,Q4413,Q4415 DTC124EUA
R4021-R4023 RS1/10S0R0J F
R4007 RS2LMF8R2J
Other Resistors RS1/16S###J
PDP-R06XE 27
5 6 7 8
1 2 3 4
Mark No. Description Part No. Mark No. Description Part No.
Q4407,Q4408 HN1A01FU COILS AND FILTERS
Q4405 HN1B04FU L4602,L4604,L4606,L4608 LCTAW1R0J2520
Q4409 HN1C01FU L4611,L4612 LCTAW1R0J2520
A D4401 UDZS33(B) L4601,L4603,L4605,L4607 LCTAW560J2520
D4403 UDZS8R2(B) L4609,L4610 LCTAW560J2520
COILS AND FILTERS SWITCHES AND RELAYS
L4401-L4403 CHIP COIL BTH1119 S4601 ASH1029
L4405,L4406 LCTAW150J2520
L4407 LCTAW4R7J2520 CAPACITORS
L4404 LCTAW8R2J2520 C4601,C4605,C4620 (10/6.3V) ACG7046
F4401,F4402 FERRITE BEAD VTF1080 C4621,C4634,C4636 (10/6.3V) ACG7046
C4662 (100UF/16V) ACH1394
CAPACITORS C4607,C4611,C4617,C4619,C4624 CCG1205
C4404,C4407,C4415 (10/6.3V) ACG7046 C4628,C4643,C4649,C4661 CCG1205
C4416,C4429,C4459 (10/6.3V) ACG7046
B
C4424 (3.3UF/50V) ACH1385 C4602,C4623,C4639 CEHAT471M10
C4449 CCSRCH680J50 C4606,C4608,C4609,C4612 CKSRYB105K10
C4442 CCSRCJ3R0C50 C4615,C4616,C4626,C4629 CKSRYB105K10
C4631-C4633,C4641,C4642 CKSRYB105K10
C4417,C4418 CCSSCH100D50 C4645,C4646,C4650,C4652-C4654 CKSRYB105K10
C4431 CCSSCH101J50
C4450 CCSSCH121J50 C4644 CKSRYB224K10
C4456 CCSSCH181J50 C4610,C4613,C4627,C4630 CKSSYB102K50
C4448 CCSSCH470J50 C4647,C4648 CKSSYB102K50
> C4655-C4660 CKSSYB102K50
C4428,C4443 CCSSCH560J50 C4604,C4614,C4622,C4637,C4651 CKSSYF104Z16
C4441 CCSSCH5R0D50
C4409,C4423 CEHVKW100M16 C4603,C4625,C4638 DCH1165
C
C4421 CEHVKW101M6R3
C4422 CEHVKW470M16 RESISTORS
R4608,R4670,R4696 RS1/10S121J
C4420 CKSRYB332K50
R4601,R4644,R4645,R4658,R4686 RS1/10S151J
C4401,C4411,C4413 CKSRYF104Z50
R4734,R4735 RS1/10S151J
C4403,C4406,C4410,C4430,C4440 CKSSYB102K50 R4630-R4632,R4643,R4675,R4681 RS1/16S75R0F
C4444,C4455,C4461 CKSSYB102K50 R4715-R4717,R4733 RS1/16S75R0F
C4408,C4439,C4446 CKSSYB103K16
Other Resistors RS1/16S###J
C4438,C4454 CKSSYB472K25
C4402,C4405,C4425,C4426,C4432 CKSSYF104Z16
C4434,C4435,C4447,C4451,C4460 CKSSYF104Z16
OTHERS
C4465 CKSSYF104Z16 JA4601 RGB CONNECTOR (DUAL) AKP1265
D JA4602 RGB CONNECTOR AKP1266
C4414,C4437,C4445 DCH1165
RESISTORS
All Resistors RS1/16S###J
[AV SW BLOCK]
SEMICONDUCTORS
OTHERS IC4807 BH3544F
IC4805 NJM12904V
X4401 CRYSTAL (18.432MHz) ASS1196
IC4806 R2S11001FT
IC4804 R2S11002AFT
IC4809 TC7WH123FU
[AV IO BLOCK]
SEMICONDUCTORS Q4801,Q4802,Q4804-Q4806,Q4809 2SA1586
Q4614,Q4615,Q4626,Q4639 2SA1586 Q4818,Q4820,Q4822,Q4823 2SA1586
E
Q4641,Q4642,Q4645,Q4646 2SA1586 Q4808,Q4811-Q4813,Q4817,Q4819 2SC4116
Q4602-Q4605,Q4607,Q4608 2SC4116 Q4821 2SC4116
Q4618-Q4620,Q4622-Q4624,Q4629 2SC4116 Q4814 DTA124EUA
Q4632-Q4637,Q4643 2SC4116
Q4815 DTC124EUA
Q4611,Q4612,Q4640 2SD2114K Q4807 HN1B04FU
Q4606,Q4616,Q4621,Q4627,Q4631 DTA124EUA D4802,D4806 1SS301
Q4610 DTA143EUA D4801 1SS355
Q4613,Q4617,Q4628 DTC124EUA
Q4601,Q4609,Q4625,Q4630,Q4638 HN1A01FU CAPACITORS
C4916 (4.7U/10V) ACG1122
Q4644 HN1C01FU
C4821,C4835,C4871 (10/6.3V) ACG7046
F D4602,D4607,D4611,D4612,D4615 1SS301
C4875,C4896,C4923 (10/6.3V) ACG7046
D4621 1SS301
C4877,C4880 CCSRCH181J50
D4606,D4626 1SS355
C4859 CCSRCH331J50
28 PDP-R06XE
1 2 3 4
5 6 7 8
Mark No. Description Part No. Mark No. Description Part No.
C4861 CCSRCH680J50 D5203 1SS355
C4885,C4888 CCSRCH681J50 D5201 SML-311UT
C4822,C4862 CEHVKW101M6R3
C4898 CEHVKW470M6R3 CAPACITORS A
C4802,C4805,C4806,C4808 CKSRYB105K10 C5235 CCSRCH221J50
C5244,C5245 CCSSCH120J50
C4813,C4814,C4820,C4833,C4834 CKSRYB105K10 C5217,C5218,C5237,C5239-C5243 CCSSCH470J50
C4836,C4838-C4841,C4847,C4848 CKSRYB105K10 C5246-C5249 CCSSCH470J50
C4850,C4851,C4878,C4879,C4889 CKSRYB105K10 C5238 CEHVKW100M35
C4894,C4895,C4899-C4905,C4922 CKSRYB105K10
C4837 CKSRYB474K10 C5201 CEHVKW101M6R3
C5261-C5263 CKSSYB102K50
C4853-C4858,C4860,C4865 CKSSYB103K16 C5216,C5233 CKSSYB103K16
C4869,C4870,C4890-C4893 CKSSYB103K16 C5215 CKSSYB472K25
C4807,C4809 CKSSYB104K10 C5253 CKSSYF103Z50
C4801,C4819,C4845,C4846,C4864 CKSSYF104Z16
C4873,C4881,C4884,C4886,C4887 CKSSYF104Z16 C5202-C5214,C5219,C5222-C5232 CKSSYF104Z16 B
C5234,C5252 CKSSYF104Z16
C4917-C4921,C4924,C4925 CKSSYF104Z16 C5236 DCH1165
C4844,C4863,C4866,C4872,C4876 DCH1165
C4882,C4883 DCH1165 RESISTORS
R5262,R5268 ACN1248
RESISTORS R5205,R5213 RAB4CQ101J
R4975,R4999 RD1/2LMF120J R5283 RS1/16S1001F
R4784,R4786 RS1/16S1800F R5282 RS1/16S4701F
R4785,R4787,R4792,R4794,R4796 RS1/16S5600F R5273 RS1/16S8201F
R4791,R4793,R4795 RS1/16S75R0F
R4857-R4860,R4944,R4985 RS1/16SS3301F Other Resistors RS1/16S###J
Other Resistors RS1/16S###J C
OTHERS
CN5202 50P CONNECTOR AKM1201
K5201,K5202 TEST PIN AKX9002
[IF UCOM BLOCK] X5201 CERAMIC RESONATOR ASS1178
SEMICONDUCTORS
IC5002 HD64F3684FP
IC5003 PST9230N [TEXT UCOM BLOCK]
IC5001 TC74VHC08FTS1 SEMICONDUCTORS
IC5004 TC7W126FU IC5403 K4S641632H-TC75
Q5005 DTA124EUA IC5404 S29AL016D70TFI010
IC5405 SDA6000
Q5001 DTC124EUA
IC5407 TC74LCX125FT
IC5402 TC7SH04FUS1 D
CAPACITORS
C5007,C5008 CCSSCH180J50 IC5406 TC7W126FU
C5001 CEHVKW101M6R3 Q5401,Q5406 DTA124EUA
C5010 CKSSYB472K25 Q5403,Q5407 DTC124EUA
C5002-C5005,C5009,C5012 CKSSYF104Z16 D5404 1SS355
D5401 UDZS12(B)
RESISTORS
R5002,R5004,R5007,R5025,R5026 RAB4CQ103J D5402 UDZS3R0(B)
Other Resistors RS1/16S###J D5403 UDZS3R9(B)
OTHERS COILS AND FILTERS
X5002 CERAMIC RESONATOR ASS1168 > F5402,F5403 EMI FILTER CCG1162
E
X5001 CRYSTAL ASS1172
CAPACITORS
C5412,C5438,C5453 (10/6.3V) ACG7046
[MAIN UCOM BLOCK] C5422,C5423 CCSSCH200J50
SEMICONDUCTORS C5404 CKSSYB102K50
IC5202 BR24L64F-W C5403 CKSSYB103K16
IC5206 MB91305PMC-G-BND C5445 CKSSYB104K10
IC5207 MBM29DL162TE70TN
IC5210 MM1522XU C5405,C5406,C5408,C5410,C5413 CKSSYF104Z16
IC5209 PQ200WNA1ZPH C5416,C5418,C5420,C5425,C5427 CKSSYF104Z16
C5429-C5431,C5434,C5435,C5440 CKSSYF104Z16
IC5203 PST3628UR C5442,C5446,C5449,C5451,C5454 CKSSYF104Z16
IC5201,IC5204 TC74VHC125FTS1 C5456,C5458,C5460,C5476 CKSSYF104Z16 F
Q5202 2SJ461A
Q5204 DTC124EUA
Q5201 SM6K2
PDP-R06XE 29
5 6 7 8
1 2 3 4
Mark No. Description Part No. Mark No. Description Part No.
RESISTORS C6211,C6212,C6215-C6217 CKSSYF104Z16
R5409 ACN1251 C6222-C6224 CKSSYF104Z16
R5404,R5428,R5429,R5434,R5435 BCN1067
A R5439,R5457,R5476 RAB4CQ103J RESISTORS
R5432,R5460 RAB4CQ680J R6213,R6218,R6223 BCN1067
Other Resistors RS1/16S###J R6202 RS1/16SS2701F
Other Resistors RS1/16S###J
OTHERS
X5401 CRYSTAL ASS1193
[HDMI BLOCK]
SEMICONDUCTORS
[VDEC BLOCK] IC6402,IC6403 BR24L02FJ-W
SEMICONDUCTORS IC6405 PCM1754DBQ
IC6002 K4S161622H-TC60 IC6404 SII9021CTU
IC6001 TVP5150AM1PBS Q6416,Q6417 2SA1586
B IC6003 UPD64015AGM-UEU Q6412,Q6414 DTA124EUA
Q6002 DTA124EUA
Q6413,Q6415 DTC124EUA
COILS AND FILTERS Q6402,Q6405 HN1K02FU
> F6001,F6002 EMI FILTER CCG1162 Q6403,Q6404 RN1902
> F6008-F6011,F6022 EMI FILTER CCG1162 D6404,D6408 1SS301
D6403,D6407 UDZS6R8(B)
CAPACITORS
C6056,C6088 (10/6.3V) ACG7046
COILS AND FILTERS
> F6401 EMI FILTER CCG1162
C6059,C6060 CCSSCH100D50
C6078,C6083 CCSSCH8R0D50
C6048-C6050 CKSRYB105K10 CAPACITORS
C6062,C6069,C6070,C6074,C6080 CKSSYB103K16 C6491 (10/6.3V) ACG7046
C C6401,C6403,C6405,C6407,C6409 CCSSCH101J50
C6046,C6051,C6052,C6054,C6058 CKSSYB104K10 C6411,C6419,C6426,C6428,C6430 CCSSCH101J50
C6063,C6064,C6066,C6067 CKSSYB104K10 C6432,C6434,C6435,C6438,C6440 CCSSCH101J50
C6072,C6073,C6075-C6077 CKSSYB104K10 C6442,C6444,C6446,C6448,C6449 CCSSCH101J50
C6081,C6082,C6084,C6085 CKSSYB104K10
C6001-C6008,C6012-C6028 CKSSYF104Z16 C6454,C6456,C6459,C6464,C6466 CCSSCH101J50
C6468,C6470,C6472,C6474,C6476 CCSSCH101J50
C6031-C6045,C6047,C6053,C6055 CKSSYF104Z16 C6478,C6480,C6482 CCSSCH101J50
C6061,C6065,C6068,C6071,C6079 CKSSYF104Z16 C6462,C6463 CCSSCH120J50
C6090,C6091 CKSSYF104Z16 C6425,C6484 CEHVKW220M6R3
RESISTORS C6402,C6404,C6406,C6408,C6410 CKSSYF104Z16
C6412,C6414,C6416,C6418 CKSSYF104Z16
R6010,R6062,R6068,R6072 ACN1246
D C6420-C6424,C6427,C6429,C6431 CKSSYF104Z16
R6065,R6073 BCN1067
C6433,C6436,C6437,C6439,C6441 CKSSYF104Z16
R6007,R6023,R6030,R6071 RAB4CQ220J
C6443,C6445,C6447,C6450-C6453 CKSSYF104Z16
R6063 RS1/16SS1001D
R6038,R6039,R6049 RS1/16SS2000F
C6455,C6457,C6458,C6460,C6461 CKSSYF104Z16
C6465,C6467,C6469,C6471,C6473 CKSSYF104Z16
R6054 RS1/16SS2201D
C6475,C6477,C6479,C6481,C6483 CKSSYF104Z16
R6052 RS1/16SS6200D
C6490 CKSSYF104Z16
Other Resistors RS1/16S###J
OTHERS RESISTORS
X6001 CRYSTAL ASS1189 R6418,R6419,R6421 ACN1251
X6002 CRYSTAL ASS1191 R6414 RAB4CQ100J
R6465 RAB4CQ103J
E
R6438 RAB4CQ470J
R6416 RAB4CQ680J
[ADC BLOCK]
SEMICONDUCTORS Other Resistors RS1/16S###J
IC6201 AD9985KSTZ-110
OTHERS
COILS AND FILTERS JA6401,JA6402 HDMI CONNECTOR AKP1278
> F6201,F6204 EMI FILTER CCG1162 X6401 CRYSTAL ASS1192
CAPACITORS
C6205,C6209 CKSSYB104K10 [DSEL BLOCK]
C6207,C6210,C6218 CKSSYB473K16 SEMICONDUCTORS
F C6202 CKSSYB822K16 IC6601 PD6523A
C6201 CKSSYB823K10 IC6602 TC74LCX125FT
C6203,C6204,C6206,C6208 CKSSYF104Z16
30 PDP-R06XE
1 2 3 4
5 6 7 8
Mark No. Description Part No. Mark No. Description Part No.
COILS AND FILTERS RESISTORS
> F6604 CHIP FERRITE BEAD ATX1058 R7011,R7013,R7024,R7032,R7036 ACN1246
> F6601-F6603 EMI FILTER CCG1162 R7062-R7064 ACN1251
R7015,R7023 RAB4CQ101J A
CAPACITORS R7016,R7018,R7070 RAB4CQ103J
C6632 (10/6.3V) ACG7046 R7060 RAB4CQ680J
C6604 CCSRCH221J50
C6631 CKSSYB102K50 Other Resistors RS1/16S###J
C6601-C6603,C6607-C6610 CKSSYF104Z16
C6613-C6617,C6619,C6621-C6623 CKSSYF104Z16
[MR IF BLOCK]
C6625-C6627,C6629,C6630 CKSSYF104Z16 SEMICONDUCTORS
IC7202 SII170BCLG64
RESISTORS IC7201,IC7203 TC74VHC08FTS1
R6603-R6605 ACN1251 Q7206 2SA1586
R6611,R6614,R6618 BCN1071 Q7203,Q7207,Q7210 DTA124EUA B
R6613,R6620 RAB4CQ101J Q7211 DTC124EUA
Other Resistors RS1/16S###J
Q7209 HN1C01FU
OTHERS Q7201 RN1902
X6601 CRYSTAL ASS1194 D7202-D7206 1SS355
COILS AND FILTERS
[IP BLOCK] > F7204-F7207 EMI FILTER ATF1209
SEMICONDUCTORS > L7201 CHIP FERRITE BEAD BTX1042
> F7201-F7203,F7208 EMI FILTER CCG1162
IC6801,IC6802 K4S643232H-TC60
IC6803 PE5504B
CAPACITORS
COILS AND FILTERS C7203,C7207,C7208 (10/6.3V) ACG7046 C
> L6801-L6804 CHIP FERRITE BEAD BTX1042 C7226,C7227 CCSSCH100D50
C7201,C7204,C7211,C7213,C7214 CCSSCH101J50
C7216,C7217,C7219,C7221 CCSSCH101J50
CAPACITORS C7223 CKSSYB102K50
C6801 (10/6.3V) ACG7046
C6863 CKSSYB102K50
C7209,C7215,C7220,C7225,C7228 CKSSYB471K50
C6802,C6804,C6807-C6809,C6813 CKSSYF104Z16 C7202,C7205,C7206,C7210,C7212 CKSSYF104Z16
C6815-C6817,C6821,C6824-C6828 CKSSYF104Z16 C7218,C7224 CKSSYF104Z16
C6830,C6831,C6834,C6835 CKSSYF104Z16
C6839-C6862 CKSSYF104Z16
RESISTORS
R7215 RAB4CQ101J
R7216 RS1/16S5100F
RESISTORS Other Resistors RS1/16S###J D
R6833,R6838 ACN1246
R6841,R6844-R6847 ACN1251
R6813,R6814,R6816,R6820,R6821 BCN1067
OTHERS
R6823,R6825,R6827,R6828 BCN1067 CN7201 20P SOCKET AKP1226
R6818 BCN1071 CN7202 24P DVI SOCKET AKP1250
R6832 RAB4CQ101J
R6817 RAB4CQ470J
Other Resistors RS1/16S###J REAR IO ASSY
COILS AND FILTERS
L7401,L7402 LCTAW560J2520
[MULTI BLOCK]
E
SEMICONDUCTORS CAPACITORS
IC7001 PEG121B C7404,C7405 CKSRYB102K50
IC7002 S29JL032H70TFI21 C7401-C7403 CKSRYB105K10
IC7004 TC74VHC08FTS1
RESISTORS
COILS AND FILTERS R7401-R7403 RS1/16S75R0F
> F7001-F7006 EMI FILTER CCG1162 Other Resistors RS1/16S###J
CAPACITORS OTHERS
C7052 CKSSYB102K50 JA7401 3P PIN JACK AKB1321
C7006,C7008,C7010-C7017,C7019 CKSSYF104Z16 JA7402 3P PIN JACK AKB1328
C7021,C7023,C7024,C7026-C7029 CKSSYF104Z16 CN7402 CONNECTOR CKS3826
C7032-C7034,C7036,C7037 CKSSYF104Z16 F
C7039-C7042,C7044,C7046-C7048 CKSSYF104Z16
C7050 CKSSYF104Z16
PDP-R06XE 31
5 6 7 8
1 2 3 4
Mark No. Description Part No. Mark No. Description Part No.
SR ASSY LED ASSY
SEMICONDUCTORS SEMICONDUCTORS
IC7601 MAX3232CPW Q8003 DTA124EUA
A
IC7603 TC74VHC00FTS1 Q8004 DTC124EUA
IC7602 TC74VHC125FTS1 Q8002 RN2902
Q7601,Q7605 2SA1586 D8001 SML-311DT
Q7603 2SC4116 D8003 SML-311UT
Q7602,Q7604,Q7606 DTC124EUA D8004 SML310BA1T
D7609-D7612 1SS355
SWITCHES AND RELAYS
CAPACITORS S8001-S8006 ASG1088
C7608,C7611 CEHVKW100M16
C7603-C7607,C7609,C7610 CKSSYF104Z16 CAPACITORS
C8005,C8006 CCSRCH101J50
B RESISTORS C8001,C8002 CKSSYF104Z16
All Resistors RS1/16S###J
RESISTORS
OTHERS All Resistors RS1/16S###J
JA7603 4P MINI JACK AKN1073
CN7602 9P D-SUB SOCKET AKP1213 OTHERS
CN7601 CONNECTOR CKS3826 CN8001 CONNECTOR CKS3826
JA7602 REMOTE CONTROL JACK RKN1004
POWER SUPPLY UNIT
FRONT ASSY POWER SUPPLY Unit has no service part.
C SEMICONDUCTORS
IC7801 BR24C21FJ
IC7802 TC74VHC08FTS1
Q7806-Q7808 2SC4116
Q7804,Q7805 DTC124EUA
D7813 1SS301 7 FOR PDP-R06FE
D7816-D7818 1SS302 Mark No. Description Part No.
D7801-D7803 UDZS5R1(B)
D7809-D7812,D7814,D7815 UDZS5R6(B)
MR MAIN ASSY
D7804,D7808 UDZS9R1(B) OTHERS
FRONT END AXF1149
COILS AND FILTERS DD CON UNIT AXY1117
D L7801,L7802 LCTAW1R0J2520
L7803,L7804 LCTAW560J2520
[BOARD IF BLOCK]
CAPACITORS SEMICONDUCTORS
C7821,C7827,C7829,C7830 (10/6.3V) ACG7046 Q4003,Q4004 2SA1586
C7822,C7823 CCSRCH220J50 Q4001 DTA124EUA
C7817,C7818 CEHAT471M10 Q4002 TPC6104
C7803,C7804 CKSRYB103K50 D4001-D4003,D4005 1SS355
C7805,C7808,C7809,C7813 CKSRYB105K10
CAPACITORS
C7831,C7832,C7834 CKSRYB105K10 C4002 CKSRYB105K10
C7801 CKSRYB473K16 C4003,C4004 CKSSYB104K10
> C7839,C7840 CKSSYB102K50
E
C7802,C7820,C7824 CKSSYF104Z16 RESISTORS
C7819,C7835 DCH1165 R4021-R4023 RS1/10S0R0J
R4007 RS2LMF8R2J
RESISTORS Other Resistors RS1/16S###J
R7801,R7803,R7809,R7857-R7859 RS1/16S75R0F
Other Resistors RS1/16S###J OTHERS
CN4008,CN4010 AKM1233
OTHERS 12P FFC CONNECTOR
JA7803 PIN JACK 3P AKB1303 CN4001 50P CONNECTOR AKM1236
CN7803 12P FFC CONNECTOR AKM1233 CN4009 PH CONNECTOR 3P AKM1274
CN7804 50P CONNECTOR AKM1236
CN7801 MINI JACK AKN1028
F CN7806 15P D-SUB SOCKET AKP1214
JA7801 4P MINI DIN SOCKET AKP1238
32 PDP-R06XE
1 2 3 4
5 6 7 8
Mark No. Description Part No. Mark No. Description Part No.
[RGB BLOCK] CAPACITORS
SEMICONDUCTORS C4404,C4407,C4415 (10/6.3V) ACG7046
IC4212 BD6522F C4416,C4429,C4459 (10/6.3V) ACG7046
IC4211 MM1661JH C4424 (3.3UF/50V) ACH1385 A
IC4202 NCP1117ST15 C4449 CCSRCH680J50
IC4209 NCP1117ST18 C4442 CCSRCJ3R0C50
IC4201 PQ025ENA1ZPH
C4417,C4418 CCSSCH100D50
IC4204,IC4205 PQ033ENA1ZPH C4431 CCSSCH101J50
IC4206 PQ050DNA1ZPH C4450 CCSSCH121J50
IC4203 PQ090DNA1ZPH C4456 CCSSCH181J50
Q4201 DTC124EUA C4448 CCSSCH470J50
D4201-D4206,D4209,D4211 1SS355
C4428,C4443 CCSSCH560J50
COILS AND FILTERS C4441 CCSSCH5R0D50
L4201 INDUCTOR BTH1111 C4409,C4423 CEHVKW100M16
C4421 CEHVKW101M6R3 B
> L4203-L4205 CHIP FERRITE BEAD BTX1042
> F4201-F4203,F4205,F4207 CCG1162 C4422 CEHVKW470M16
EMI FILTER
C4420 CKSRYB332K50
C4401,C4411,C4413 CKSRYF104Z50
CAPACITORS C4403,C4406,C4410,C4430,C4440 CKSSYB102K50
C4201,C4206,C4209,C4215 (10/6.3V) ACG7046 C4444,C4455,C4461 CKSSYB102K50
C4220,C4240,C4250,C4253 (10/6.3V) ACG7046 C4408,C4439,C4446 CKSSYB103K16
C4257,C4260,C4263 (10/6.3V) ACG7046
C4213 (100UF/16V) ACH1394
C4438,C4454 CKSSYB472K25
C4210,C4244,C4269 ACH1429
C4402,C4405,C4425,C4426,C4432 CKSSYF104Z16
C4434,C4435,C4447,C4451,C4460 CKSSYF104Z16
C4273 CCSSCH101J50
C4465 CKSSYF104Z16
C4205,C4216,C4219,C4221,C4222 CEHVKW101M6R3 C
C4414,C4437,C4445 DCH1165
C4224,C4228,C4238,C4264 CEHVKW101M6R3
C4226 CEHVKW220M16
RESISTORS
C4214 CKSRYB104K16 All Resistors RS1/16S###J
C4203,C4217,C4223 CKSRYB105K10
C4229,C4252 CKSSYB104K10 OTHERS
C4232 CKSSYB471K50 X4401 CRYSTAL (18.432MHz) ASS1196
C4204,C4212,C4227,C4251 CKSSYF104Z16
C4261,C4262 CKSSYF104Z16 [AV IO BLOCK]
C4211,C4225,C4256 DCH1165 SEMICONDUCTORS
Q4614,Q4615,Q4626,Q4639 2SA1586
RESISTORS Q4641,Q4642,Q4645,Q4646 2SA1586 D
All Resistors RS1/16S###J Q4602-Q4605,Q4607,Q4608 2SC4116
Q4618-Q4620,Q4622-Q4624,Q4629 2SC4116
Q4632-Q4636,Q4643 2SC4116
[TUNER BLOCK]
SEMICONDUCTORS Q4611,Q4612 2SD2114K
Q4606,Q4616,Q4621,Q4631 DTA124EUA
IC4401 MSP3417G
Q4610 DTA143EUA
Q4404 2SA1586
Q4613,Q4617 DTC124EUA
Q4401,Q4402 2SC4116
Q4601,Q4609,Q4625,Q4630 HN1A01FU
Q4414 DTA124EUA
Q4410,Q4413,Q4415 DTC124EUA
Q4644 HN1C01FU
D4602,D4607,D4611,D4621 1SS301
Q4407,Q4408 HN1A01FU E
D4606,D4626 1SS355
Q4405 HN1B04FU
Q4409 HN1C01FU
D4401 UDZS33(B) COILS AND FILTERS
D4403 UDZS8R2(B) L4602,L4604,L4606,L4608 LCTAW1R0J2520
L4611,L4612 LCTAW1R0J2520
COILS AND FILTERS L4601,L4603,L4605,L4607 LCTAW560J2520
L4401-L4403 CHIP COIL BTH1119 L4609,L4610 LCTAW560J2520
L4405,L4406 LCTAW150J2520
L4407 LCTAW4R7J2520 SWITCHES AND RELAYS
L4404 LCTAW8R2J2520 S4601 ASH1029
F4401,F4402 FERRITE BEAD VTF1080
F
PDP-R06XE 33
5 6 7 8
1 2 3 4
Mark No. Description Part No. Mark No. Description Part No.
CAPACITORS C4807,C4809 CKSSYB104K10
C4601,C4605,C4620 (10/6.3V) ACG7046 C4801,C4819,C4845,C4846,C4864 CKSSYF104Z16
C4621,C4634,C4636 (10/6.3V) ACG7046 C4873,C4884,C4886,C4887 CKSSYF104Z16
A C4662 (100UF/16V) ACH1394 C4917-C4920,C4924,C4925 CKSSYF104Z16
C4607,C4611,C4617,C4619,C4624 CCG1205 C4844,C4863,C4866,C4872,C4876 DCH1165
C4628,C4643,C4649 CCG1205
RESISTORS
C4602,C4623,C4639 CEHAT471M10 R4784,R4786 RS1/16S1800F
C4606,C4608,C4609,C4612 CKSRYB105K10 R4785,R4787,R4792,R4794,R4796 RS1/16S5600F
C4615,C4616,C4626,C4629 CKSRYB105K10 R4791,R4793,R4795 RS1/16S75R0F
C4631-C4633,C4641,C4642 CKSRYB105K10 R4857-R4860,R4944,R4985 RS1/16SS3301F
C4645,C4646,C4650,C4652-C4654 CKSRYB105K10 Other Resistors RS1/16S###J
C4610,C4613,C4627,C4630 CKSSYB102K50
C4647,C4648 CKSSYB102K50 [IF UCOM BLOCK]
> C4655-C4660 CKSSYB102K50 SEMICONDUCTORS
B C4604,C4614,C4622,C4637,C4651 CKSSYF104Z16 IC5002 HD64F3684FP
C4603,C4625,C4638 DCH1165 IC5003 PST9230N
IC5001 TC74VHC08FTS1
RESISTORS IC5004 TC7W126FU
R4608,R4670,R4696 RS1/10S121J Q5005 DTA124EUA
R4601,R4644,R4645,R4658,R4686 RS1/10S151J
R4734,R4735 RS1/10S151J Q5001 DTC124EUA
R4630-R4632,R4643,R4675,R4681 RS1/16S75R0F
R4715-R4717,R4733 RS1/16S75R0F CAPACITORS
C5007,C5008 CCSSCH180J50
Other Resistors RS1/16S###J
C5001 CEHVKW101M6R3
C5010 CKSSYB472K25
C OTHERS C5002-C5005,C5009,C5012 CKSSYF104Z16
JA4601 RGB CONNECTOR (DUAL) AKP1265
JA4602 RGB CONNECTOR AKP1266 RESISTORS
R5002,R5004,R5007,R5025,R5026 RAB4CQ103J
Other Resistors RS1/16S###J
[AV SW BLOCK]
SEMICONDUCTORS OTHERS
IC4805 NJM12904V X5002 CERAMIC RESONATOR ASS1168
IC4806 R2S11001FT X5001 CRYSTAL ASS1172
IC4804 R2S11002FT
Q4801,Q4802,Q4804-Q4806,Q4809 2SA1586
Q4818,Q4820 2SA1586 [MAIN UCOM BLOCK]
D Q4812,Q4813 ◦ Jabse Service Manual Search 2024 ◦ Jabse Pravopis ◦ onTap.bg ◦ Other service manual resources online : Fixya ◦ eServiceinfo
