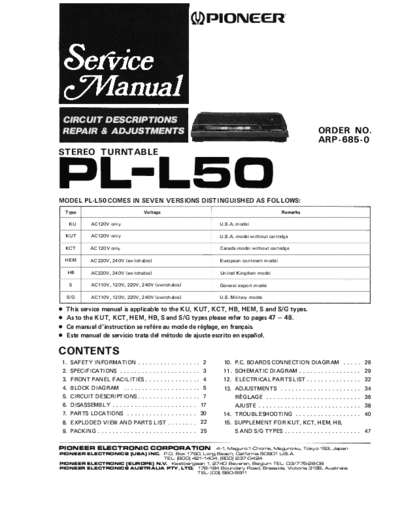

Image preview - the first page of the document
ve_pioneer_pl-l50_service_en


>> Download ve_pioneer_pl-l50_service_en documenatation <<

Text preview - extract from the document
                                                   O,f}PIONEER'




 CIRCUIT DESCRIPTIONS
 REPAIR & ADJUSTMENTS                                   - --
                                                   ------   - -     --

                                                                                             ORDER NO.
                                                                                             ARP-685-0
STEREO TURNTABLE


PL-L50
MODEL PL-L50 COM ES IN SEVEN VERSIONS DIS INGU ISHED AS FOLLOWS:
                                         T
  Type                          Voltage                                            Remarks

   KU      AC120V only                                  U.S.A. model

  KUT      AC120V only                                  U.S.A. model without cartridge

  KCT      AC120V only                                  Canada model without cartridge

  HEM      AC220V, 240V (switchable)                    European continent model

   HB      AC220V, 240V (switchable)                    United Kingdom model

   s       AC110V, 120V, 220V, 240V (switchable)        General export model

  SIG      AC110V, 120V, 220V, 240V (switchable)        U.S. Military model
