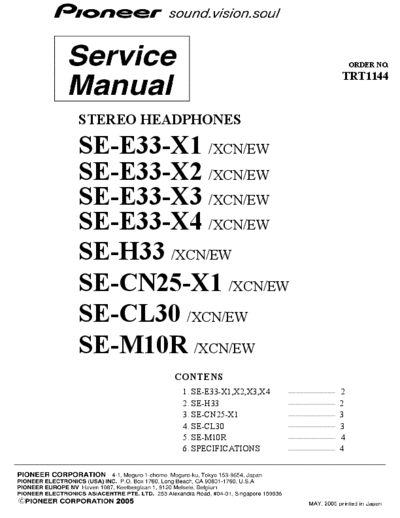

Image preview - the first page of the document
>> Download trt1144_se_e33_x1_246 documenatation <<
Text preview - extract from the document
ORDER NO.
TRT1144
STEREO HEADPHONES
SE-E33-X1 /XCN/EW
SE-E33-X2 /XCN/EW
SE-E33-X3 /XCN/EW
SE-E33-X4 /XCN/EW
SE-H33 /XCN/EW
SE-CN25-X1 /XCN/EW
SE-CL30 /XCN/EW
SE-M10R /XCN/EW
CONTENS
1. SE-E33-X1,X2,X3,X4 2
2. SE-H33 2
3. SE-CN25-X1 3
4. SE-CL30 3
5. SE-M10R 4
6. SPECIFICATIONS 4
SE-E33 // SE-H33
SE-E33 SE-H33
1. SE-E33-X1,X2,X3,X4
1.1COLOR LIST
MODEL COLOR MODEL COLOR
SE-E33-X1 Black/Metal SE-E33-X3 Silver/Dark Blue
SE-E33-X2 Dark Silver/Red SE-E33-X4 Metal/Camouflage
1.2 EXPLLOED VIEW
Plug Form
Packing View
How to change plates How to adjust the hanger
2. SE-H33
2.1 PARTS LIST
Mark No. Description Parts No. Packing View
1 Ear Pad WNV1116
2 Extension Cord WDE1174
2.2 EXPLLODED VIEW
2
1
2
SE-CN25 // SE-CL30
SE-CN25 SE-CL30
3. SE-CN25-X1
3.1 PARTS LIST
Mark No. Description Parts No.
1 Ring WNK2406
2 Cover WNK2409
3.2 EXPLLOED VIEW
Packing View
1
2
Plug Form
4. SE-CL30
4.1 PARTS LIST
Mark No. Description Parts No.
1 Earphone Chips /Medium WNK2255
2 Earphone Chips /Small WNK2256
3 Earphone Chips /Large WNK2257
4.2 EXPLLOED VIEW
Packing View
2
1
Plug Form 3
3
SE-M10R
SE-M10R
5. SE-M10R
5.1 PARTS LIST
Mark No. Description Parts No.
1 Ear Pad WNV1098
2 Cord Assy WDE1203
3 Plug Adapter WKX1033
Packing View
5.2 EXPLLODED VIEW
1
2
3
SCREW-LOCKING CONSTRUCTION TO
ADJUST LENGTH OF THE BAND
How to adjust the length of the headband
Turn A (band adjusting screw) counterclockwise to loosen it.
Slide the headband to the length you like.
After deciding the length, turn A clockwise to tighten it.
DETACHABLE CORD WHICH ALLOWS CORD SELECTION
ACCORDING TO THE CONNECTING EQUIPMENT
Locking Method
Align mark of the body bush with mark of the cord plug and
insert the plug into the body firmly.
Turn the cord plug clockwise to align mark of the Body bush
with mark of the cord plug, and locking is complete.
Unlocking Method
You can unlock it by turning the cord plug counterclockwise until
mark of the body bush aligns with mark of the cord plug.
6. SPECIFICATIONS
Frequency Maximum Weight
Model Impedanc Sensitivity Driver unit Plug Cord
responce Input power (Without cord)
SE-E33- 15 ~24,000Hz 16 50mW(JEITA) 104dB/mW 16 mm L 1.2m 20 g
S 1.0m
SE-H33 20 ~20,000Hz 32 100mW(JEITA) 104dB/mW 30 mm 45 g
L 1.0m
SE-CN25-X1 18 ~22,000Hz 16 100mW(JEITA) 106dB/mW 13.5 mm L 1.2m 6g
SE-CL30 5 ~23,000Hz 16 100mW(JEITA) 102dB/mW 10 mm L 1.2m 5g
SE-M10R 5 ~28,000Hz 35 3,000mW(JEITA) 106dB/mW 50 mm W 7.0m 275 g
MODEL : The column of is a color sign. (X1:Black/Metal,X2:Dark Silver/Red,X3:Silver/Dark Blue,X4:Metal/Camouflage)
Plug form : S (straight type) / L (L type) / W (2Way plug)
