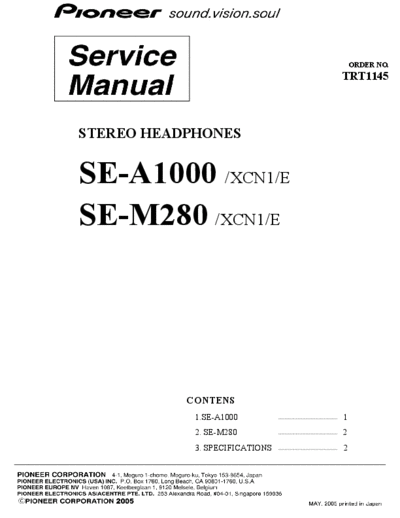

Image preview - the first page of the document
>> Download trt1145_se_a1000_417 documenatation <<
Text preview - extract from the document
ORDER NO.
TRT1145
STEREO HEADPHONES
SE-A1000 /XCN1/E
SE-M280 /XCN1/E
CONTENS
1.SE-A1000 1
2. SE-M280 2
3. SPECIFICATIONS 2
SE-A1000 // SE-M280
SE-A1000 SE-M280
1. SE-A1000
1.1 PARTS LIST
Mark No. Description Parts No.
1 Ear Pad WNV1118
2 Plug Adaptor WKX1035
1.2 EXPLLOED VIEW Packing View
1
2
2. SE-M280
2.1 PARTS LIST
Mark No. Description Parts No.
1 Ear Pad WNV1103
2 Plug Adaptor WKX1036
2.2 EXPLLOED VIEW
Packing View
1
2
3. SPECIFICATIONS
Frequency Maximum Weight
Model Impedanc Sensitivity Driver unit Plug Cord
responce Input power (Without cord)
SE-A1000 10 ~30,000Hz 45 1,500mW(JEITA) 102dB/mW 50 mm W 6.0m 280 g
SE-M280 5 ~25,000Hz 32 1,200mW(JEITA) 102dB/mW 40 mm W 3.5m 225 g
Plug form : S (straight type) / L (L type) / W (2Way plug)
2
