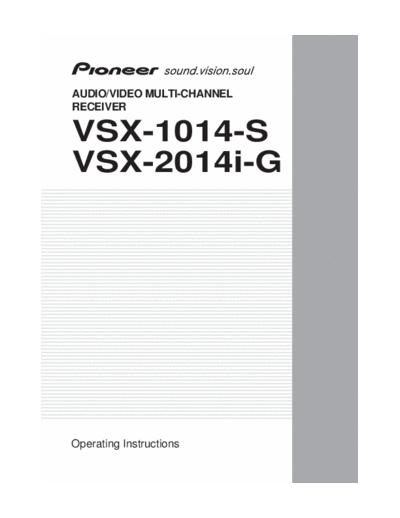

Image preview - the first page of the document
>> Download hfe_pioneer_vsx-1014-s_2014i-g_en documenatation <<
Text preview - extract from the document
AUDIO/VIDEO MULTI-CHANNEL
RECEIVER
VSX-1014-S
VSX-2014i-G
Operating Instructions
IMPORTANT
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
The lightning flash with arrowhead symbol, CAUTION: The exclamation point within an equilateral
within an equilateral triangle, is intended to TO PREVENT THE RISK OF ELECTRIC triangle is intended to alert the user to the
alert the user to the presence of uninsulated SHOCK, DO NOT REMOVE COVER (OR presence of important operating and
"dangerous voltage" within the product's BACK). NO USER-SERVICEABLE PARTS maintenance (servicing) instructions in the
enclosure that may be of sufficient INSIDE. REFER SERVICING TO QUALIFIED literature accompanying the appliance.
magnitude to constitute a risk of electric SERVICE PERSONNEL.
shock to persons.
D3-4-2-1-1_En-A
Thank you for buying this Pioneer product. VENTILATION CAUTION
Please read through these operating When installing this unit, make sure to leave space
around the unit for ventilation to improve heat
instructions so you will know how to operate
radiation (at least 60 cm at top, 10 cm at rear, and
your model properly. After you have finished 30 cm at each side).
reading the instructions, put them away in a WARNING
safe place for future reference. Slots and openings in the cabinet are provided for
ventilation to ensure reliable operation of the
product, and to protect it from overheating. To
WARNING prevent fire hazard, the openings should never be
Before plugging in for the first time, read the following blocked or covered with items (such as newspapers,
section carefully. table-cloths, curtains) or by operating the
The voltage of the available power supply differs equipment on thick carpet or a bed. D3-4-2-1-7b_A_En
according to country or region. Be sure that the
power supply voltage of the area where this unit
will be used meets the required voltage (e.g., 230V
or 120V) written on the rear panel. D3-4-2-1-4_A_En
WARNING AUD
IO/VI
DEO
DVD/
MUL
LD
TI-CH
ANN
TV/SA
EL
T
RECE
IVER
VSX
-52T
X
To prevent a fire hazard, do not place any naked
CD DVR/
VCR
CD-R/
TAPE VIDE
/MD O1
TUNE
R
VIDE
O2
MAS
TER
VOLU
ME
flame sources (such as a lighted candle) on the
equipment. D3-4-2-1-7a_A_En
Operating Environment
WARNING Operating environment temperature and humidity:
This equipment is not waterproof. To prevent a fire +5 ◦ Jabse Service Manual Search 2024 ◦ Jabse Pravopis ◦ onTap.bg ◦ Other service manual resources online : Fixya ◦ eServiceinfo
