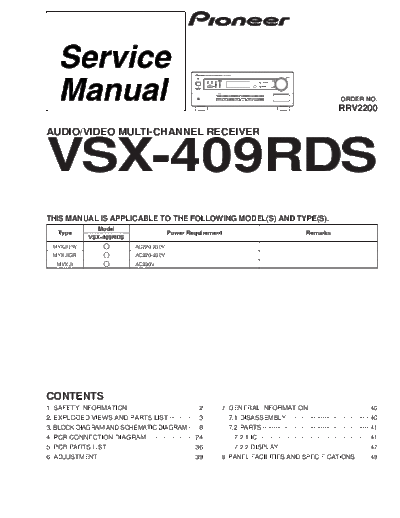

Image preview - the first page of the document



>> Download hfe_pioneer_vsx-409rds_service documenatation <<

Text preview - extract from the document

                                                                                                                                   ORDER NO.
                                                                                                                                  RRV2200

AUDIO/VIDEO MULTI-CHANNEL RECEIVER


VSX-409RDS
THIS MANUAL IS APPLICABLE TO THE FOLLOWING MODEL(S) AND TYPE(S).
                    Model
     Type                                            Power Requirement                                            Remarks
                  VSX-409RDS
  MYXJIEW                              AC220-230V
   MYXJIGR                             AC220-230V
    MVXJI                              AC230V




CONTENTS
1. SAFETY INFORMATION ...................................... 2          7. GENERAL INFORMATION ................................                      40
2. EXPLODED VIEWS AND PARTS LIST ............... 3                         7.1 DISASSEMBLY ............................................              40
3. BLOCK DIAGRAM AND SCHEMATIC DIAGRAM ..... 8                             7.2 PARTS ..........................................................      41
4. PCB CONNECTION DIAGRAM ......................... 24                       7.2.1 IC ............................................................   41
5. PCB PARTS LIST ............................................... 36         7.2.2 DISPLAY .................................................         47
6. ADJUSTMENT .................................................... 39   8. PANEL FACILITIES AND SPECIFICATIONS .......                               49
VSX-409RDS



1. SAFETY INFORMATION
This service manual is intended for qualified service technicians ; it is not meant for the casual do-it-
yourselfer. Qualified technicians have the necessary test equipment and tools, and have been trained
to properly and safely repair complex products such as those covered by this manual.
Improperly performed repairs can adversely affect the safety and reliability of the product and may
void the warranty. If you are not qualified to perform the repair of this product properly and safely, you
should not risk trying to do so and refer the repair to a qualified service technician.
WARNING
This product contains lead in solder and certain electrical parts contain chemicals which are known to the state of California to cause
cancer, birth defects or other reproductive harm.
                                                                              Health & Safety Code Section 25249.6
