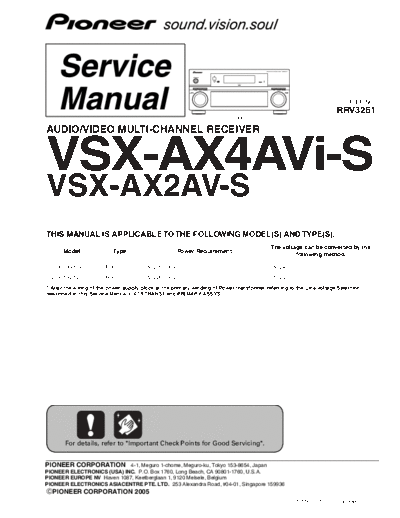

Image preview - the first page of the document
>> Download pioneer_vsx-ax4avi-s_ax2av-s_rrv3261 documenatation <<
Text preview - extract from the document
AUDIO/VIDEO MULTI-CHANNEL RECEIVER VSX-AX4AVi
STANDBY/ON
PHASE
CONTROL
DIGITAL PRECISION
PROCESSING
PHASE MCACC AUTO SURR/ HOME STANDARD ADVANCED
CONTROL POSITION STREAM DIRECT THX SURROUND SURROUND
INPUT MASTER
SELECTOR VOLUME
ORDER NO.
RRV3261
VSX-AX4AVi-S
AUDIO/VIDEO MULTI-CHANNEL RECEIVER
VSX-AX4AVi-S
VSX-AX2AV-S
THIS MANUAL IS APPLICABLE TO THE FOLLOWING MODEL(S) AND TYPE(S).
The voltage can be converted by the
Model Type Power Requirement
following method.
VSX-AX4AVi-S HYXJ AC220-230V AC240V, *
VSX-AX2AV-S HYXJ AC220-230V AC240V, *
*:Alter the wiring of the power-supply block at the primary winding of Power transformer referring to the Line Voltage Selection
described in this Service Manual ("4.19 TRANS1 and PRIMARY ASSYS").
For details, refer to "Important Check Points for Good Servicing".
PIONEER CORPORATION 4-1, Meguro 1-chome, Meguro-ku, Tokyo 153-8654, Japan
PIONEER ELECTRONICS (USA) INC. P.O. Box 1760, Long Beach, CA 90801-1760, U.S.A.
PIONEER EUROPE NV Haven 1087, Keetberglaan 1, 9120 Melsele, Belgium
PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 253 Alexandra Road, #04-01, Singapore 159936
PIONEER CORPORATION 2005
T-ZZK OCT. 2005 printed in Japan
1 2 3 4
SAFETY INFORMATION
A
This service manual is intended for qualified service technicians; it is not meant for the casual
do-it-yourselfer. Qualified technicians have the necessary test equipment and tools, and have been
trained to properly and safely repair complex products such as those covered by this manual.
Improperly performed repairs can adversely affect the safety and reliability of the product and may
void the warranty. If you are not qualified to perform the repair of this product properly and safely, you
should not risk trying to do so and refer the repair to a qualified service technician.
WARNING
B This product contains lead in solder and certain electrical parts contain chemicals which are known to the state of California to
cause cancer, birth defects or other reproductive harm.
