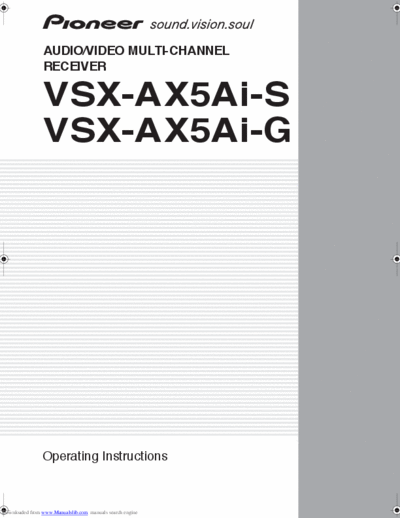

Image preview - the first page of the document
>> Download vsxax5aig documenatation <<
Text preview - extract from the document
AUDIO/VIDEO MULTI-CHANNEL
RECEIVER
VSX-AX5Ai-S
VSX-AX5Ai-G
Operating Instructions
Downloaded from www.Manualslib.com manuals search engine
IMPORTANT
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
The lightning flash with arrowhead symbol, CAUTION: The exclamation point within an equilateral
within an equilateral triangle, is intended to TO PREVENT THE RISK OF ELECTRIC triangle is intended to alert the user to the
alert the user to the presence of uninsulated SHOCK, DO NOT REMOVE COVER (OR presence of important operating and
"dangerous voltage" within the product's BACK). NO USER-SERVICEABLE PARTS maintenance (servicing) instructions in the
enclosure that may be of sufficient INSIDE. REFER SERVICING TO QUALIFIED literature accompanying the appliance.
magnitude to constitute a risk of electric SERVICE PERSONNEL.
shock to persons.
D3-4-2-1-1_En-A
NOTE: THE NO USER-SERVICEABLE PARTS COMPARTMENT WARNING IS LOCATED ON THE APPLIANCE BONNET
Replacement and mounting of an AC plug on the power supply cord of this unit should be performed only by qualified
service personnel.
The cut-off plug should be disposed of and must Do not connect either wire to the earth terminal of a
IMPORTANT not be inserted into any 13 amp socket as this can
result in electric shock. The plug or adaptor or the
three pin plug.
distribution panel should be provided with 10 A NOTE
FOR USE IN THE UNITED fuse. As the colours of the wires in the mains lead After replacing or changing a fuse, the fuse cover in
KINGDOM of this appliance may not correspond with coloured the plug must be replaced with a fuse cover which
The wires in this mains lead are coloured in markings identifying the terminals in your plug, corresponds to the colour of the insert in the base
accordance with the following code: proceed as follows ; of the plug or the word that is embossed on the
Blue : Neutral The wire which is coloured blue must be connected base of the plug, and the appliance must not be
Brown : Live to the terminal which is marked with the letter N or used without a fuse cover. If lost replacement fuse
If the plug provided is unsuitable for your socket coloured black. covers can be obtained from your dealer.
outlets, the plug must be cut off and a suitable plug The wire which is coloured brown must be Only 10 A fuses approved by B.S.I or A.S.T.A to
fitted. connected to the terminal which is marked with the B.S.1362 should be used.
letter L or coloured red. D3-4-2-1-2-2_En
Thank you for buying this Pioneer product. VENTILATION CAUTION
Please read through these operating When installing this unit, make sure to leave space
around the unit for ventilation to improve heat
instructions so you will know how to operate
radiation (at least 60 cm at top, 10 cm at rear, and
your model properly. After you have finished 30 cm at each side).
reading the instructions, put them away in a WARNING
safe place for future reference. Slots and openings in the cabinet are provided for
ventilation to ensure reliable operation of the
product, and to protect it from overheating. To
WARNING prevent fire hazard, the openings should never be
Before plugging in for the first time, read the following blocked or covered with items (such as newspapers,
section carefully. table-cloths, curtains) or by operating the
The voltage of the available power supply differs equipment on thick carpet or a bed. D3-4-2-1-7b_A_En
according to country or region. Be sure that the
power supply voltage of the area where this unit
will be used meets the required voltage (e.g., 230V
or 120V) written on the rear panel. D3-4-2-1-4_A_En
WARNING
To prevent a fire hazard, do not place any naked
flame sources (such as a lighted candle) on the
equipment. D3-4-2-1-7a_A_En
Operating Environment
This product complies with the Low Voltage Directive Operating environment temperature and humidity:
