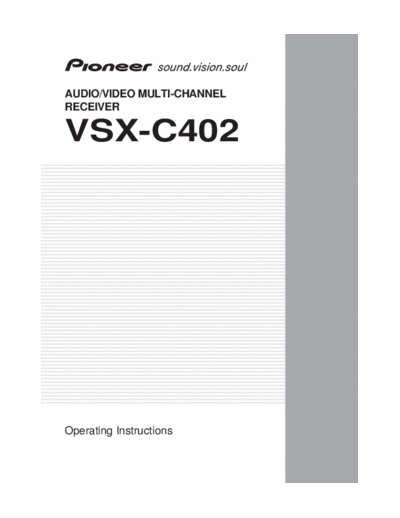

Image preview - the first page of the document
>> Download hfe_pioneer_vsx-c402_en documenatation <<
Text preview - extract from the document
AUDIO/VIDEO MULTI-CHANNEL
RECEIVER
VSX-C402
Operating Instructions
IMPORTANT
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
The lightning flash with arrowhead symbol, CAUTION: The exclamation point within an equilateral
within an equilateral triangle, is intended to TO PREVENT THE RISK OF ELECTRIC triangle is intended to alert the user to the
alert the user to the presence of uninsulated SHOCK, DO NOT REMOVE COVER (OR presence of important operating and
"dangerous voltage" within the product's BACK). NO USER-SERVICEABLE PARTS maintenance (servicing) instructions in the
enclosure that may be of sufficient INSIDE. REFER SERVICING TO QUALIFIED literature accompanying the appliance.
magnitude to constitute a risk of electric SERVICE PERSONNEL.
shock to persons. D3-4-2-1-1_En
Replacement and mounting of an AC plug on the power supply cord of this unit should be performed only by qualified
service personnel.
The cut-off plug should be disposed of and must Do not connect either wire to the earth terminal of a
IMPORTANT not be inserted into any 13 amp socket as this can
result in electric shock. The plug or adaptor or the
three pin plug.
distribution panel should be provided with 5 A fuse. NOTE
FOR USE IN THE UNITED As the colours of the wires in the mains lead of this After replacing or changing a fuse, the fuse cover in
KINGDOM appliance may not correspond with coloured the plug must be replaced with a fuse cover which
The wires in this mains lead are coloured in markings identifying the terminals in your plug, corresponds to the colour of the insert in the base
accordance with the following code: proceed as follows ; of the plug or the word that is embossed on the
Blue : Neutral The wire which is coloured blue must be connected base of the plug, and the appliance must not be
Brown : Live to the terminal which is marked with the letter N or used without a fuse cover. If lost replacement fuse
If the plug provided is unsuitable for your socket coloured black. covers can be obtained from your dealer.
outlets, the plug must be cut off and a suitable plug The wire which is coloured brown must be Only 5 A fuses approved by B.S.I or A.S.T.A to
fitted. connected to the terminal which is marked with the B.S.1362 should be used.
letter L or coloured red. D3-4-2-1-2-2_En
Thank you for buying this Pioneer product. WARNING: The apparatus is not waterproofs, to
Please read through these operating instructions so prevent fire or shocks hazard, do not expose this
you will know how to operate your model properly. apparatus to rain or moisture and do not put any
After you have finished reading the instructions, put water source near this apparatus, such as vase,
them away in a safe place for future reference. flower pot, cosmetics container and medicine
bottle etc. D3-4-2-1-3_En
In some countries or regions, the shape of the power
plug may sometimes differ from that shown in the The STANDBY/ON switch is secondary connected
explanatory drawings. However, the method of con- and therefore, does not separate the unit from mains
necting and operating the unit is the same. power in STANDBY position. Therefore install the
unit suitable places easy to disconnect the MAINS
This product complies with the Low Voltage Directive plug in case of the accident. The MAINS plug of unit
(73/23/EEC, amended by 93/68/EEC), EMC Directives should be unplugged from the wall socket when left
(89/336/EEC, amended by 92/31/EEC and unused for a long period of time. D3-4-2-2-2a_En
93/68/EEC). D3-4-2-1-9a_En
CAUTION
WARNING: The POWER switch does not completely separates
BEFORE PLUGGING IN THE UNIT FOR THE FIRST the unit from the MAINS in off position. Therefore
TIME, READ THE FOLLOWING SECTION CAREFULLY. install the unit suitable places easy to disconnect
The voltage of the available power supply differs the MAINS plug in case of the accident. The MAINS
according to country or region. Be sure that the plug of unit should be unplugged from the wall
power supply voltage of the area where this unit socket when left unused for a long period of time.
will be used meets the required voltage (e.g., 230V D3-4-2-2-2b_En
or 120V) written on the rear panel. D3-4-2-1-4_En
This product is for general household purposes.
WARNING: No naked flame sources, such as
Any failure due to use for other than household
lighted candle, should be placed on the apparatus.
If naked flame sources accidentally fall down, fire purposes (such as long-term use for business
spread over the apparatus then may cause fire. purposes in a restaurant or use in a car or ship)
D3-4-2-1-7a_En and which requires repair will be charged for even
during the warranty period.
VENTILATION: When installing this unit, make K041_En
sure to leave space around the unit for ventilation
to improve heat radiation (at least 20 cm at top, 50 Operating Environment
cm at rear, and 10 cm at each side). Operating environment temperature and humidity:
