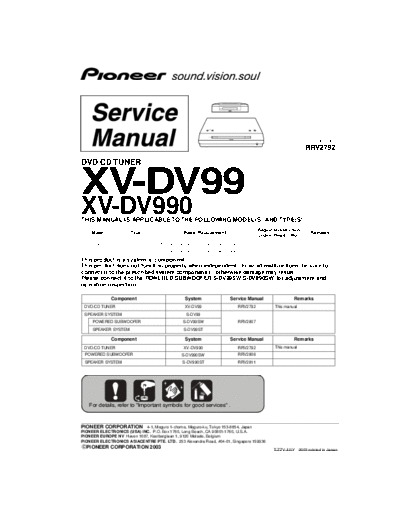

Image preview - the first page of the document
>> Download pioneer_xv-dv99_dv990 documenatation <<Text preview - extract from the document TIMER STANDBY/ON 0 OPEN/CLOSE
ORDER NO.
RRV2792
XV-DV99
DVD/CD TUNER
XV-DV99
XV-DV990
THIS MANUAL IS APPLICABLE TO THE FOLLOWING MODEL(S) AND TYPE(S).
Regional restriction
Model Type Power Requirement Remarks
codes (Region No.)
XV-DV99 ZYXJ, ZVXJ DC power supplied from other system component 2
XV-DV990 ZYXJ, ZVXJ DC power supplied from other system component 2
This product is a system(s) component.
This product does not function properly when independent ; to avoid malfunctions, be sure to
connect it to the prescribed system component(s), otherwise damage may result.
Please connect it to the POWERED SUBWOOFER S-DV99SW/S-DV990SW, for adjustment and
operation inspection.
Component System Service Manual Remarks
DVD/CD TUNER XV-DV99 RRV2792 This manual
SPEAKER SYSTEM S-DV99
POWERED SUBWOOFER S-DV99SW RRV2807
SPEAKER SYSTEM S-DV99ST
Component System Service Manual Remarks
DVD/CD TUNER XV-DV990 RRV2792 This manual
POWERED SUBWOOFER S-DV990SW RRV2806
SPEAKER SYSTEM S-DV990ST RRV2811
For details, refer to "Important symbols for good services" .
PIONEER CORPORATION 4-1, Meguro 1-chome, Meguro-ku, Tokyo 153-8654, Japan
PIONEER ELECTRONICS (USA) INC. P.O. Box 1760, Long Beach, CA 90801-1760, U.S.A.
PIONEER EUROPE NV Haven 1087, Keetberglaan 1, 9120 Melsele, Belgium
PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 253 Alexandra Road, #04-01, Singapore 159936
PIONEER CORPORATION 2003
T-ZZV JULY 2003 printed in Japan
1 2 3 4
SAFETY INFORMATION
A
This service manual is intended for qualified service technicians; it is not meant for the casual
do-it-yourselfer. Qualified technicians have the necessary test equipment and tools, and have been
trained to properly and safely repair complex products such as those covered by this manual.
Improperly performed repairs can adversely affect the safety and reliability of the product and may
void the warranty. If you are not qualified to perform the repair of this product properly and safely, you
should not risk trying to do so and refer the repair to a qualified service technician.
B WARNING !
THE AEL (ACCESSIBLE EMISSION LEVEL) OF THE LASER POWER OUTPUT IS LESS THAN CLASS 1
BUT THE LASER COMPONENT IS CAPABLE OF EMITTING RADIATION EXCEEDING THE LIMIT FOR
CLASS 1.
A SPECIALLY INSTRUCTED PERSON SHOULD DO SERVICING OPERATION OF THE APPARATUS.
LASER DIODE CHARACTERISTICS
FOR DVD : MAXIMUM OUTPUT POWER : 5 mW
WAVELENGTH : 650 nm
FOR CD : MAXIMUM OUTPUT POWER : 7 mW
WAVELENGTH : 780 nm
C
LABEL CHECK
D VRW1872
Additional Laser Caution
1. Laser Interlock Mechanism
