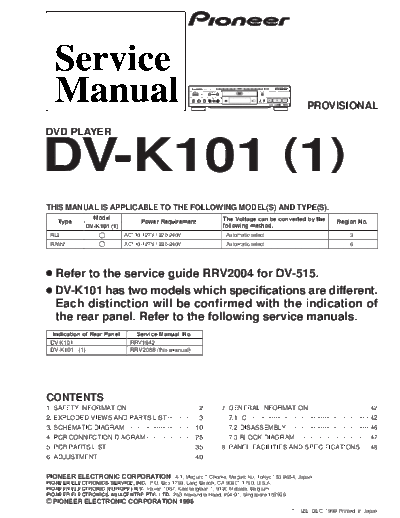

Image preview - the first page of the document
>> Download DV-K101.4 documenatation <<
Text preview - extract from the document
PLAYBACK ONE-TOUCH KARAOKE
CONTROL KARAOKE MODE
1 2 3 4 5 6 7 8 9 0 +10
DVD PLAYER DV-K101 ON/OFF
KEY
OPEN/CLOSE
STANDBY/ ON LOW CONTROL HIGH
STANDBY
ECHO MIC 1 MIC 2 MIC 1 MC MIC 2
STOP PLAY P USE
A
DIGITAL VIDEO
RETURN SELECT
PROVISIONAL
MIC CONTROL PREVIOUS NEXT
MIN MAX MIN MAX MIN MAX
DVD PLAYER
DV-K101 (1)
THIS MANUAL IS APPLICABLE TO THE FOLLOWING MODEL(S) AND TYPE(S).
Model The Voltage can be converted by the
Type Power Requirement Region No.
DV-K101 (1) following method.
RL2 AC110-127V / 220-240V Automatic select 3
RAM2 AC110-127V / 220-240V Automatic select 6
Refer to the service guide RRV2004 for DV-515.
DV-K101 has two models which specifications are different.
Each distinction will be confirmed with the indication of
the rear panel. Refer to the following service manuals.
Indication of Rear Panel Service Manual No.
DV-K101 RRV1942
DV-K101 (1) RRV2088 (this manual)
CONTENTS
1. SAFETY INFORMATION ...................................... 2 7. GENERAL INFORMATION ................................ 42
2. EXPLODED VIEWS AND PARTS LIST ................ 3 7.1 IC .................................................................. 42
3. SCHEMATIC DIAGRAM ..................................... 10 7.2 DISASSEMBLY ............................................ 46
4. PCB CONNECTION DIAGRAM .......................... 25 7.3 BLOCK DIAGRAM ........................................ 47
5. PCB PARTS LIST ............................................... 35 8. PANEL FACILITIES AND SPECIFICATIONS .... 48
6. ADJUSTMENT .................................................... 40
PIONEER ELECTRONIC CORPORATION 4-1, Meguro 1-Chome, Meguro-ku, Tokyo 153-8654, Japan
PIONEER ELECTRONICS SERVICE, INC. P.O. Box 1760, Long Beach, CA 90801-1760, U.S.A.
PIONEER ELECTRONIC (EUROPE) N.V. Haven 1087, Keetberglaan 1, 9120 Melsele, Belgium
PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 253 Alexandra Road, #04-01, Singapore 159936
c PIONEER ELECTRONIC CORPORATION 1998
