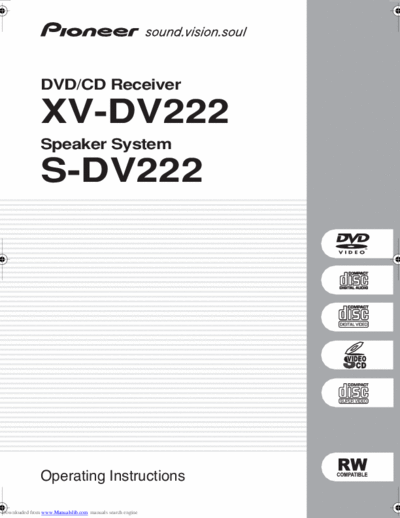

Image preview - the first page of the document
>> Download xvdv222 documenatation <<
Text preview - extract from the document
DVD/CD Receiver
XV-DV222
Speaker System
S-DV222
Operating Instructions
Downloaded from www.Manualslib.com manuals search engine
CONGRATULATIONS ON YOUR PURCHASE OF THIS FINE PIONEER PRODUCT.
Pioneer is on the leading edge of DVD research for consumer products and this unit incorporates
the latest technological developments.
We are sure you will be fully satisfied with this system.
Thank you for your support.
Location: underside of the unit
IMPORTANT
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
The lightning flash with arrowhead CAUTION: The exclamation point within an
symbol, within an equilateral TO PREVENT THE RISK OF ELECTRIC equilateral triangle is intended to
triangle, is intended to alert the SHOCK, DO NOT REMOVE COVER alert the user to the presence of
user to the presence of uninsulated (OR BACK). NO USER-SERVICEABLE important operating and
"dangerous voltage" within the PARTS INSIDE. REFER SERVICING maintenance (servicing)
product's enclosure that may be of TO QUALIFIED SERVICE instructions in the literature
sufficient magnitude to constitute PERSONNEL. accompanying the appliance.
a risk of electric shock to persons. H002_En
WARNING: THIS APPARATUS IS NOT
WATERPROOF. TO PREVENT FIRE OR SHOCK
HAZARD, DO NOT EXPOSE THIS APPARATUS TO
RAIN OR MOISTURE AND DO NOT PUT ANY
WATER SOURCE NEAR THIS APPARATUS, SUCH
AS VASES, FLOWER POTS, COSMETICS
CONTAINERS, MEDICINE BOTTLES, ETC.
WARNING: BEFORE PLUGGING IN THE UNIT
FOR THE FIRST TIME, READ THE FOLLOWING
SECTION CAREFULLY. THE VOLTAGE OF THE
AVAILABLE POWER SUPPLY DIFFERS
ACCORDING TO COUNTRY OR REGION. BE SURE
THAT THE POWER SUPPLY VOLTAGE OF THE
AREA WHERE THIS UNIT WILL BE USED MEETS
THE REQUIRED VOLTAGE (E.G., 230V OR 120V)
WRITTEN ON THE REAR PANEL.
H041A_En
WARNING: NO NAKED FLAME SOURCES,
SUCH AS LIGHTED CANDLE, SHOULD BE
European model only: PLACED ON THE APPARATUS. IF NAKED FLAME
SOURCES ACCIDENTALLY FALL DOWN, FIRE
SPREAD OVER THE APPARATUS THEN MAY
CAUSE FIRE.
H044_En
Downloaded from www.Manualslib.com manuals search engine
VENTILATION: Energy-saving design
This system is designed to use 0.39 W of
When installing this unit, make sure to electricity when power is switched to standby.
leave space around the unit for ventilation
to improve heat radiation (at least 10 cm at
top, 10 cm at rear, and 10 cm at each side). CAUTION: THE STANDBY/ON BUTTON IS
SECONDARY CONNECTED AND THEREFORE
WARNING: Slots and openings in the DOES NOT SEPARATE THE UNIT FROM MAINS
POWER IN STANDBY POSITION. therefore install
cabinet are provided for ventilation and to
the unit suitable places easy to disconnect the
ensure reliable operation of the product
MAINS plug in case of the accident. The MAINS
and to protect it from overheating, to plug of unit should be unplugged from the wall
prevent fire hazard, the openings should socket when left unused for a long period of
never be blocked and covered with items, time.
such as newspapers, table-cloths, curtains, H017B_En
etc. Also do not put the apparatus on the
thick carpet, bed, sofa, or fabric having a
thick pile. H040 En Operating Environment H045_En
Operating environment temperature and
humidity:
