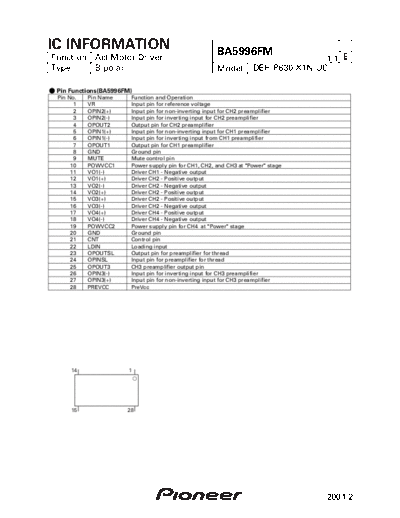

Image preview - the first page of the document



>> Download BA5996FM documenatation <<

Text preview - extract from the document

IC INFORMATION                                         BA5996FM
Function Act/Motor Driver                                                          1/1 E
Type     Bipolar                                       Model        DEH-P630/X1N/UC

- Pin Functions(BA5996FM)
  Pin No.   Pin Name    Function and Operation
        1   VR          Input pin for reference voltage
        2   OPIN2(+)    Input pin for non-inverting input for CH2 preamplifier
        3   OPIN2(-)    Input pin for inverting input for CH2 preamplifier
        4   OPOUT2      Output pin for CH2 preamplifier
        5   OPIN1(+)    Input pin for non-inverting input for CH1 preamplifier
        6   OPIN1(-)    Input pin for inverting input from CH1 preamplifier
        7   OPOUT1      Output pin for CH1 preamplifier
        8   GND         Ground pin
        9   MUTE        Mute control pin
       10   POWVCC1     Power supply pin for CH1, CH2, and CH3 at "Power" stage
       11   VO1(-)      Driver CH1 - Negative output
       12   VO1(+)      Driver CH2 - Positive output
       13   VO2(-)      Driver CH2 - Negative output
       14   VO2(+)      Driver CH2 - Positive output
       15   VO3(+)      Driver CH2 - Positive output
       16   VO3(-)      Driver CH2 - Negative output
       17   VO4(+)      Driver CH4 - Positive output
       18   VO4(-)      Driver CH4 - Negative output
       19   POWVCC2     Power supply pin for CH4 at "Power" stage
       20   GND         Ground pin
       21   CNT         Control pin
       22   LDIN        Loading input
       23   OPOUTSL     Output pin for preamplifier for thread
       24   OPINSL      Input pin for preamplifier for thread
       25   OPOUT3      CH3 preamplifier output pin
       26   OPIN3(-)    Input pin for inverting input for CH3 preamplifier
       27   OPIN3(+)    Input pin for non-inverting input for CH3 preamplifier
       28   PREVCC      PreVcc




       14               1




       15              28




                                                                                   2001.2
