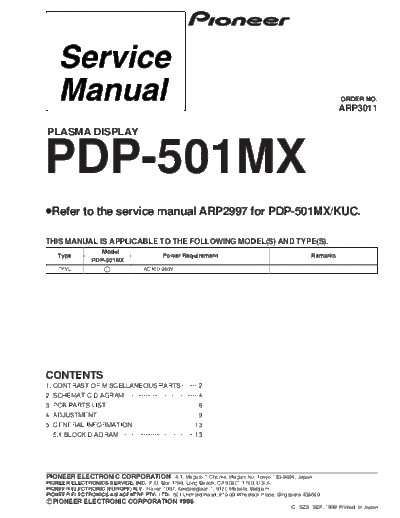

Image preview - the first page of the document



>> Download A3011 documenatation <<

Text preview - extract from the document

                                                                                                         ORDER NO.
                                                                                                        ARP3011

PLASMA DISPLAY


PDP-501MX
  Refer to the service manual ARP2997 for PDP-501MX/KUC.

THIS MANUAL IS APPLICABLE TO THE FOLLOWING MODEL(S) AND TYPE(S).
                       Model
     Type                                           Power Requirement                         Remarks
                    PDP-501MX
     TYVL                                  AC100-240V




CONTENTS
1. CONTRAST OF MISCELLANEOUS PARTS ........ 2
2. SCHEMATIC DIAGRAM ....................................... 4
3. PCB PARTS LIST ................................................. 6
4. ADJUSTMENT ...................................................... 9
5. GENERAL INFORMATION ................................. 13
   5.1 BLOCK DIAGRAM ........................................ 13




PIONEER ELECTRONIC CORPORATION              4-1, Meguro 1-Chome, Meguro-ku, Tokyo 153-8654, Japan
PIONEER ELECTRONICS SERVICE, INC. P.O. Box 1760, Long Beach, CA 90801-1760, U.S.A.
PIONEER ELECTRONIC (EUROPE) N.V. Haven 1087, Keetberglaan 1, 9120 Melsele, Belgium
PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 501 Orchard Road, #10-00 Wheelock Place, Singapore 238880
c PIONEER ELECTRONIC CORPORATION 1998
                                                                                       O- SZS SEP. 1998 Printed in Japan
PDP-501MX
1. CONTRAST OF MISCELLANEOUS PARTS
NOTES:         Parts marked by "NSP" are generally unavailable because they are not in our Master Spare Parts List.
               The mark found on some component parts indicates the importance of the safety factor of the part.
               Therefore, when replacing, be sure to use parts of identical designation.
