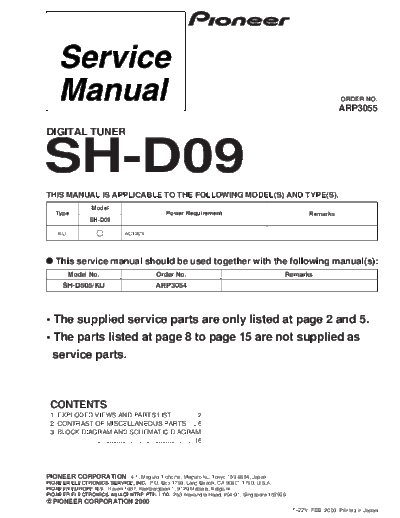

Image preview - the first page of the document



>> Download A3055 documenatation <<

Text preview - extract from the document

                                                                                                          ORDER NO.
                                                                                                         ARP3055

DIGITAL TUNER


SH-D09
THIS MANUAL IS APPLICABLE TO THE FOLLOWING MODEL(S) AND TYPE(S).
                    Model
   Type                                               Power Requirement                       Remarks
                   SH-D09

    KU                             AC120V




   This service manual should be used together with the following manual(s):
         Model No.                               Order No.                          Remarks
      SH-D505/KU                                 ARP3054
