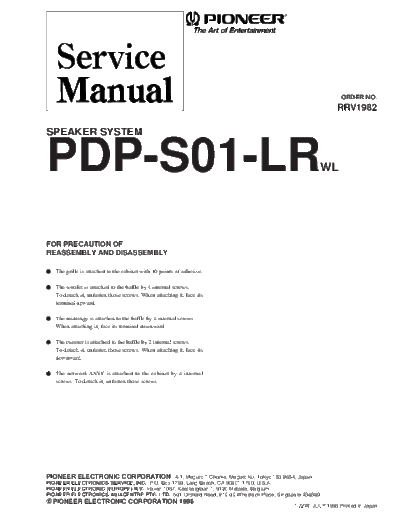

Image preview - the first page of the document
>> Download R1982 documenatation <<
Text preview - extract from the document
ORDER NO.
RRV1982
SPEAKER SYSTEM
PDP-S01-LR WL
FOR PRECAUTION OF
REASSEMBLY AND DISASSEMBLY
The grille is attached to the cabinet with 10 points of adhesive.
The woofer is attached to the baffle by 4 internal screws.
To detach it, unfasten those screws. When attaching it, face its
terminal upward.
The midrange is attached to the baffle by 4 internal screws.
When attaching it, face its terminal downward.
The tweeter is attached to the baffle by 2 internal screws.
To detach it, unfasten those screws. When attaching it, face its
downward.
The network ASSY is attached to the cabinet by 4 internal
screws. To detach it, unfasten those screws.
PIONEER ELECTRONIC CORPORATION 4-1, Meguro 1-Chome, Meguro-ku, Tokyo 153-8654, Japan
PIONEER ELECTRONICS SERVICE, INC. P.O. Box 1760, Long Beach, CA 90801-1760, U.S.A.
PIONEER ELECTRONIC (EUROPE) N.V. Haven 1087, Keetberglaan 1, 9120 Melsele, Belgium
PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 501 Orchard Road, #10-00 Wheelock Place, Singapore 238880
PIONEER ELECTRONIC CORPORATION 1998
T-ZZW JULY 1998 Printed in Japan
PDP-S01-LR
PARTS LIST
NOTES: Parts marked by "NSP" are generally unavailable because they are not in our Master Spare Parts List.
The mark found on some component parts indicates the importance of the safety factor of the part.
Therefore, when replacing, be sure to use parts of identical designation.
Mark No. Description Part No. Mark No. Description Part No.
NSP Cabinet ASSY SMX1074 Caution Label SRW1059
Bracket SNA1384 UP Label SRW1063
Baffle SNK2328 Speaker (Woofer) SWX1031
Cabinet SNK2329 Speaker (Mid-range) SWX1032
Speaker (Tweeter) FK26AP02-52F
Grille ASSY SMG1615
Packing (for top and bottom) SED1093 Screw (for Cosmetic Panel) AMZ30P060FMC
Packing (for left and right) SED1094 Screw (for Tweeter) APZ30P080FMC
NSP Punching Net SNC1165 Screw (for Baffle-Cabinet) BPZ40P200FZK
Screw (for Woofer, Mid-range, Network
Network ASSY SWN1580 , Input Terminal) BPZ40P100FMC
Warning Label 65 ORW1069
Flanged Anchor Bolt SBA1091
Serrated Flange Nut M8 SBN1002
For Packing
Packing (for Mid-range, Woofer) SEB1213 NSP Accessories Set SME2780
Speaker Wire SDS1056
Packing (for side of Cabinet) SEB1218 NSP Screw Set SEA1508
Packing (for Baffle) SEB1222 Screw CMZ50P120FZK
Gasket (for Input Terminal) SEC1383 Hexagon Socket Button Head Screw
Pressure Sensitive Adhesive Double SBA1160
Coated Tape (for Cosmetic Panel) SEH1032 Hexagon Socket Screw Keys
SEX1015
Input Terminal SKX1043 NSP Polyethylene Bag S1 SHL1177
Cosmetic Panel A SLA1048 Plain Washer WB80FZK
Cosmetic Panel B SLA1049 NSP Washer Set SEA1520
NSP Absorbent (for Speaker) SMV1888 NSP Washer WA80F250K230
NSP Absorbent (for Input Terminal) SMV1896 NSP Polyethylene Bag S0 SHL-051
NSP Polyethylene Bag S2 SHL1013
NSP Label Back (L) SME2781 Metal Fitting Set SNX1127
NSP Label (L) SAN2584 Cushion SEC1361
NSP Label Back (R) SME2782 Metal Fitting SNA1385
NSP Label (R) SAN2585
NSP Warranty Card Set SME2818
NSP Warranty Card ARY1035
SCHEMATIC DIAGRAM NSP Polyethylene Bag S1
Operating Instructions
SHL-137
SRD1203
Protector SHB1061
Network ASSY (SWN1580)
Protection Sheet(for top and bottom)SHC1710
P.SW Woofer Protection Sheet (for around) SHC1714
Red Blue
Center Divider SHD1037
0.65A 7.0mH Packing Case SHG2105
IN
Black White
Green Mid-range
1.0mH
White
P.SW
Red
P.SW has extreme positive resistance-temperature characteristics. (Less than 0.3W at
the normal temperature). If an abnormal current flows to P.SW due to an excessive
