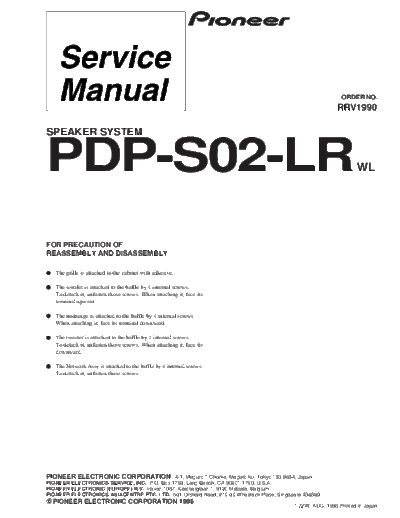

Image preview - the first page of the document
>> Download R1990 documenatation <<
Text preview - extract from the document
ORDER NO.
RRV1990
SPEAKER SYSTEM
PDP-S02-LR WL
FOR PRECAUTION OF
REASSEMBLY AND DISASSEMBLY
The grille is attached to the cabinet with adhesive.
The woofer is attached to the baffle by 4 internal screws.
To detach it, unfasten those screws. When attaching it, face its
terminal upward.
The midrange is attached to the baffle by 4 internal screws.
When attaching it, face its terminal downward.
The tweeter is attached to the baffle by 2 internal screws.
To detach it, unfasten those screws. When attaching it, face its
downward.
The Network Assy is attached to the baffle by 4 internal screws.
To detach it, unfasten those screws.
PIONEER ELECTRONIC CORPORATION 4-1, Meguro 1-Chome, Meguro-ku, Tokyo 153-8654, Japan
PIONEER ELECTRONICS SERVICE, INC. P.O. Box 1760, Long Beach, CA 90801-1760, U.S.A.
PIONEER ELECTRONIC (EUROPE) N.V. Haven 1087, Keetberglaan 1, 9120 Melsele, Belgium
PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 501 Orchard Road, #10-00 Wheelock Place, Singapore 238880
PIONEER ELECTRONIC CORPORATION 1998
T-ZZW AUG. 1998 Printed in Japan
PDP-S02-LR
PARTS LIST
NOTES: Parts marked by "NSP" are generally unavailable because they are not in our Master Spare Parts List.
The mark found on some component parts indicates the importance of the safety factor of the part.
Therefore, when replacing, be sure to use parts of identical designation.
Mark No. Description Part No. Mark No. Description Part No.
NSP Cabinet ASSY SMX1074 NSP Absorbent (for Speaker) SMV1888
Bracket SNA1384 NSP Absorbent (for Input Terminal) SMV1896
Baffle SNK2328 Caution Label SRW1059
Cabinet SNK2329 UP Label SRW1063
Grille ASSY SMG1615 Speaker (Woofer) SWX1031
Packing (for top and bottom) SED1093 Speaker (Mid-range) SWX1032
Packing (for Left and Right) SED1094 Speaker (Tweeter) FK26AP02-52F
NSP Punching Net SNC1165
Screw (for Cosmetic Panel) AMZ30P060FMC
Network ASSY SWN1580 Screw (for Tweeter) APZ30P080FMC
Warning Label 65 ORW1069 Screw (for Baffle-Cabinet) BPZ40P200FZK
Flanged Anchor Bolt SBA1091 Screw (for Woofer, Mid-range, BPZ40P100FMC
Serrated Flange Nut M8 SBN1002 Network, Input Terminal)
Packing (for Mid-range and Woofer)SEB1213
Packing (for side of Cabinet) SEB1219 For Packing
Packing (for side of Baffle) SEB1220
Packing (for Baffle) SEB1222 NSP Accessories Set SME2824
Gasket (for Input Terminal) SEC1383 Speaker Wire SDS1056
Input Terminal SKX1043 NSP Screw Set SEA1508
Screw CMZ50P120FZK
Cosmetic Panel A ASSY SLX1139 Hexagon Socket Head Screw SBA1160
Double Coated Tape SEH1032 Hexagon Wrench SEX1015
Cosmetic Panel A SLA1046 NSP Polyethylene Bag S1 SHL1177
Cosmetic Panel B ASSY SLX1140 Plain Washer WB80FZK
Double Coated Tape SEH1032 NSP Washer Set SEA1520
Cosmetic Panel B SLA1047 NSP Washer WA80F250K230
NSP Polyethylene Bag S0 SHL-051
NSP Label Back (L) SME2822 NSP Polyethylene Bag S2 SHL1013
NSP Label (L) SAN2628 Metal Fitting Set SNX1128
NSP Label Back (R) SME2823 Cushion SEC1361
NSP Label (R) SAN2629 NSP Tack Title SES1019
Metal Fitting SNA1387
NSP Warranty Card Set SME2825
SCHEMATIC DIAGRAM NSP Warranty Card ARY1093
NSP Polyethylene Bag S1 SHL-137
Network ASSY (SWN1580) Operating Instructions SRD1206
Woofer (Japanese/ English/ French/
P.SW German/ Italian/ Spanish/ Dutch)
Red Blue
0.65A 7.0mH NSP Warning Card SRP1003
IN Protector SHB1061
Protection Sheet (for top and bottom) SHC1710
Protection Sheet (for around) SHC1714
Black White Center Divider SHD1037
Green Mid-range Packing Case SHG2134
1.0mH
White
P.SW
Red P.SW has extreme positive resistance-temperature characteristics. (Less than 0.3W at
the normal temperature). If an abnormal current flows to P.SW due to an excessive
