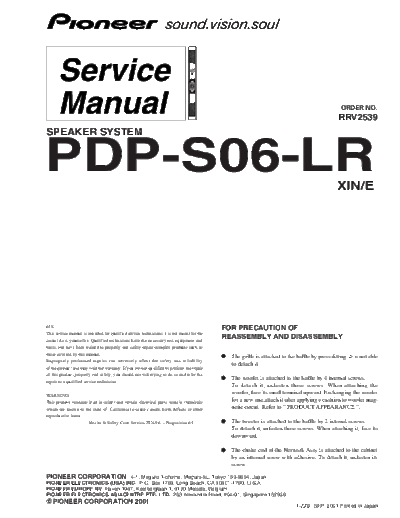

Image preview - the first page of the document
>> Download R2539 documenatation <<Text preview - extract from the document ORDER NO.
RRV2539
SPEAKER SYSTEM
PDP-S06-LR XIN/E
65S FOR PRECAUTION OF
This service manual is intended for qualified service technicians; it is not meant for the
casual do-it-yourselfer. Qualified technicians have the necessary test equipment and
REASSEMBLY AND DISASSEMBLY
tools, and have been trained to properly and safely repair complex products such as
those covered by this manual.
The grille is attached to the baffle by press-fitting. It is not able
Improperly performed repairs can adversely affect the safety and reliability
to detach it.
of the product and may void the warranty. If you are not qualified to perform the repair
of this product properly and safely, you should not risk trying to do so and refer the
repair to a qualified service technician.
The woofer is attached to the baffle by 4 internal screws.
To detach it, unfasten those screws. When attaching the
WARNING woofer, face its small terminal upward. Exchanging the woofer
This product contains lead in solder and certain electrical parts contain chemicals for a new one,attach it after applying a cushion to woofer mag-
which are known to the state of California to cause cancer, birth defects or other netic circut. Refer to " PRODUCT APPEARANCE ".
reproductive harm.
Health & Safety Code Section 25249.6
