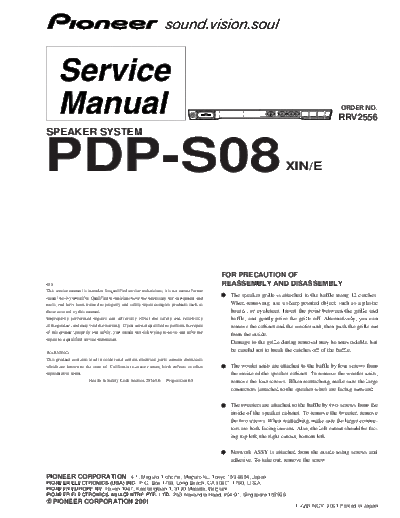

Image preview - the first page of the document
>> Download R2556 documenatation <<
Text preview - extract from the document
ORDER NO.
RRV2556
SPEAKER SYSTEM
PDP-S08 XIN/E
FOR PRECAUTION OF
65S REASSEMBLY AND DISASSEMBLY
This service manual is intended for qualified service technicians; it is not meant for the
casual do-it-yourselfer. Qualified technicians have the necessary test equipment and The speaker grille is attached to the baffle using 12 catches.
tools, and have been trained to properly and safely repair complex products such as When removing, use a sharp pointed object, such as a plastic
those covered by this manual. board , or eyeleteer. Insert the point between the grille and
Improperly performed repairs can adversely affect the safety and reliability baffle, and gently prize the grille off. Alternatively, you can
of the product and may void the warranty. If you are not qualified to perform the repair remove the cabinet and the woofer unit, then push the grille out
of this product properly and safely, you should not risk trying to do so and refer the
from the inside.
repair to a qualified service technician.
Damage to the grille during removal may be unavoidable, but
WARNING be careful not to break the catches off of the baffle.
This product contains lead in solder and certain electrical parts contain chemicals
which are known to the state of California to cause cancer, birth defects or other The woofer units are attached to the baffle by four screws from
reproductive harm. the inside of the speaker cabinet. To remove the woofer units,
