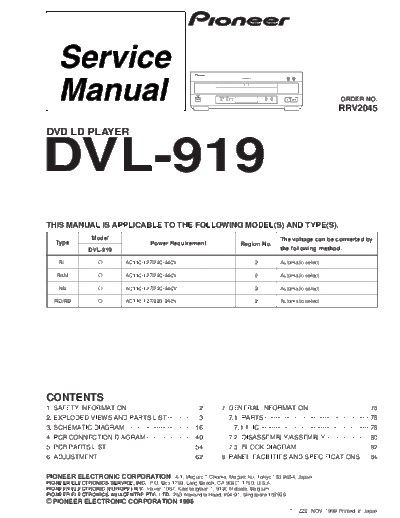

Image preview - the first page of the document



>> Download DVL-919 documenatation <<

Text preview - extract from the document

                                                                                                                                   ORDER NO.
                                                                                                                                  RRV2045

DVD LD PLAYER


DVL-919
THIS MANUAL IS APPLICABLE TO THE FOLLOWING MODEL(S) AND TYPE(S).
                    Model                                                                            The voltage can be converted by
    Type                                     Power Requirement                   Region No.
                  DVL-919                                                                            the following method.

     RL                           AC110-127/220-240V                                    3            Automatic select

    RAM                           AC110-127/220-240V                                    6            Automatic select

     RB                           AC110-127/220-240V                                    3            Automatic select

   RD/RB                          AC110-127/220-240V                                    2            Automatic select




CONTENTS
1. SAFETY INFORMATION ...................................... 2          7. GENERAL INFORMATION ................................                     78
2. EXPLODED VIEWS AND PARTS LIST ................ 3                        7.1 PARTS .........................................................      78
3. SCHEMATIC DIAGRAM ..................................... 16                7.1.1 IC ...........................................................   78
4. PCB CONNECTION DIAGRAM .......................... 40                    7.2 DISASSEMBLY/ASSEMBLY .......................                         80
5. PCB PARTS LIST ............................................... 54       7.3 BLOCK DIAGRAM .......................................                82
6. ADJUSTMENT .................................................... 62   8. PANEL FACILITIES AND SPECIFICATIONS ....                                 84

PIONEER ELECTRONIC CORPORATION              4-1, Meguro 1-Chome, Meguro-ku, Tokyo 153-8654, Japan
PIONEER ELECTRONICS SERVICE, INC. P.O. Box 1760, Long Beach, CA 90801-1760, U.S.A.
PIONEER ELECTRONIC (EUROPE) N.V. Haven 1087, Keetberglaan 1, 9120 Melsele, Belgium
PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 253 Alexandra Road, #04-01, Singapore 159936
c PIONEER ELECTRONIC CORPORATION 1998
