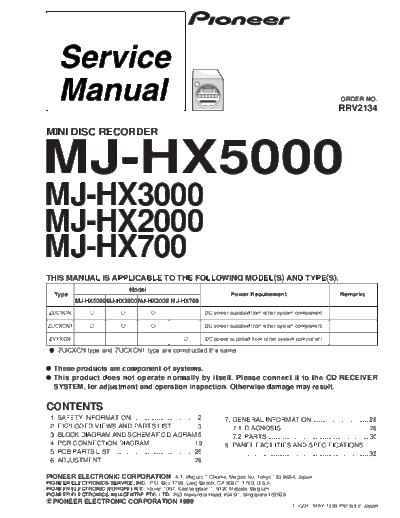

Image preview - the first page of the document



>> Download MJ-HX5000_MJ-HX3000_MJ-HX2000_MJ-HX700 documenatation <<

Text preview - extract from the document

                                                                                                                                         ORDER NO.
                                                                                                                                        RRV2134

MINI DISC RECORDER


MJ-HX5000
MJ-HX3000
MJ-HX2000
MJ-HX700
THIS MANUAL IS APPLICABLE TO THE FOLLOWING MODEL(S) AND TYPE(S).
                                     Model
  Type                                                                           Power Requirement                                      Remarks
           MJ-HX5000MJ-HX3000 MJ-HX2000 MJ-HX700

 ZUCXCN                                                    --          DC power supplied from other system component

ZUCXCN1                                                    --          DC power supplied from other system component

 ZVYXCN           --            --           --                        DC power supplied from other system component
