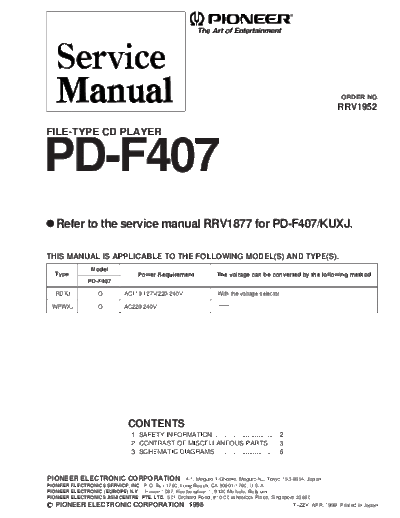

Image preview - the first page of the document



>> Download PD-F407 documenatation <<

Text preview - extract from the document

                                                                                                                 ORDER NO.
                                                                                                               RRV1952

FILE-TYPE CD PLAYER


PD-F407
   Refer to the service manual RRV1877 for PD-F407/KUXJ.

THIS MANUAL IS APPLICABLE TO THE FOLLOWING MODEL(S) AND TYPE(S).
                Model
  Type                            Power Requirement              The voltage can be converted by the following method.
               PD-F407

   RDXJ            O         AC110-127V/220-240V                 With the voltage selector

 WPWXJ             O         AC220-240V




                              CONTENTS
                                1. SAFETY INFORMATION .................................... 2
                                2. CONTRAST OF MISCELLANEOUS PARTS ..... 3
                                3. SCHEMATIC DIAGRAMS .................................. 6



PIONEER ELECTRONIC CORPORATION                     4-1, Meguro 1-Chome, Meguro-ku, Tokyo 153-8654, Japan
PIONEER ELECTRONICS SERVICE, INC. P.O. Box 1760, Long Beach, CA 90801-1760, U.S.A.
PIONEER ELECTRONIC (EUROPE) N.V . Haven 1087, Keetberglaan 1, 9120 Melsele, Belgium
PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 501 Orchard Road, #10-00 Wheelock Place, Singapore 23880
C PIONEER ELECTRONIC CORPORATION 1998                                                          T
