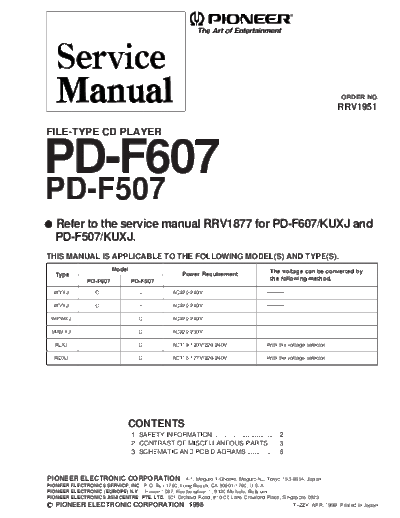

Image preview - the first page of the document



>> Download PD-F607 documenatation <<

Text preview - extract from the document

                                                                                                                   ORDER NO.
                                                                                                                  RRV1951

FILE-TYPE CD PLAYER


PD-F607
PD-F507
   Refer to the service manual RRV1877 for PD-F607/KUXJ and
   PD-F507/KUXJ.
THIS MANUAL IS APPLICABLE TO THE FOLLOWING MODEL(S) AND TYPE(S).
                         Model                                                         The voltage can be converted by
   Type                                             Power Requirement
               PD-F607           PD-F507                                               the following method.

  WYXJ            O                              AC220-240V

  WVXJ            O                              AC220-240V

 WPWXJ                             O             AC220-240V

 MAMXJ                             O             AC220-230V

  RLXJ                             O             AC110-120V/220-240V                  With the voltage selector

  RDXJ                             O             AC110-127V/220-240V                  With the voltage selector




                              CONTENTS
                                 1. SAFETY INFORMATION .................................... 2
                                 2. CONTRAST OF MISCELLANEOUS PARTS ..... 3
                                 3. SCHEMATIC AND PCB DIAGRAMS ................. 8



PIONEER ELECTRONIC CORPORATION                     4-1, Meguro 1-Chome, Meguro-ku, Tokyo 153-8654, Japan
PIONEER ELECTRONICS SERVICE, INC. P.O. Box 1760, Long Beach, CA 90801-1760, U.S.A.
PIONEER ELECTRONIC (EUROPE) N.V . Haven 1087, Keetberglaan 1, 9120 Melsele, Belgium
PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 501 Orchard Road, #10-00 Lane Crawford Place, Singapore 0923
C PIONEER ELECTRONIC CORPORATION 1998                                                            T
