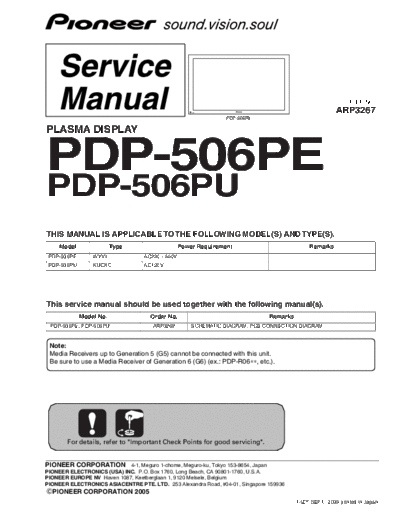

Image preview - the first page of the document



>> Download Pioneer PDP-506PU documenatation <<

Text preview - extract from the document

                                                                                                           ORDER NO.
                                                                                                         ARP3267
                                                                 PDP-506PE

PLASMA DISPLAY


PDP-506PE
PDP-506PU
THIS MANUAL IS APPLICABLE TO THE FOLLOWING MODEL(S) AND TYPE(S).
    Model                Type                     Power Requirement                           Remarks
 PDP-506PE       WYVI              AC220 - 240V
 PDP-506PU       KUCXC             AC120V




This service manual should be used together with the following manual(s).
             Model No.               Order No.                                 Remarks
 PDP-506PE, PDP-506PU                 ARP3268         SCHEMATIC DIAGRAM, PCB CONNECTION DIAGRAM


 Note:
 Media Receivers up to Generation 5 (G5) cannot be connected with this unit.
 Be sure to use a Media Receiver of Generation 6 (G6) (ex.: PDP-R06, etc.).




       For details, refer to "Important Check Points for good servicing".


PIONEER CORPORATION         4-1, Meguro 1-chome, Meguro-ku, Tokyo 153-8654, Japan
PIONEER ELECTRONICS (USA) INC. P.O. Box 1760, Long Beach, CA 90801-1760, U.S.A.
PIONEER EUROPE NV Haven 1087, Keetberglaan 1, 9120 Melsele, Belgium
PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 253 Alexandra Road, #04-01, Singapore 159936
  PIONEER CORPORATION 2005
                                                                                         T-IZY SEPT. 2005 printed in Japan
                 1                                     2                                 3                                     4

    SAFETY INFORMATION

A


    This service manual is intended for qualified service technicians ; it is not meant for the casual
    do-it-yourselfer. Qualified technicians have the necessary test equipment and tools, and have been
    trained to properly and safely repair complex products such as those covered by this manual.
    Improperly performed repairs can adversely affect the safety and reliability of the product and may
    void the warranty. If you are not qualified to perform the repair of this product properly and safely,
    you should not risk trying to do so and refer the repair to a qualified service technician.

    WARNING
    This product contains lead in solder and certain electrical parts contain chemicals which are known to the state of California to
B   cause cancer, birth defects or other reproductive harm.
                                                                                Health & Safety Code Section 25249.6 - Proposition 65


    NOTICE
    (FOR CANADIAN MODEL ONLY)
    Fuse symbols           (fast operating fuse) and/or                (slow operating fuse) on PCB indicate that replacement parts
    must be of identical designation.

    REMARQUE
    (POUR MOD
