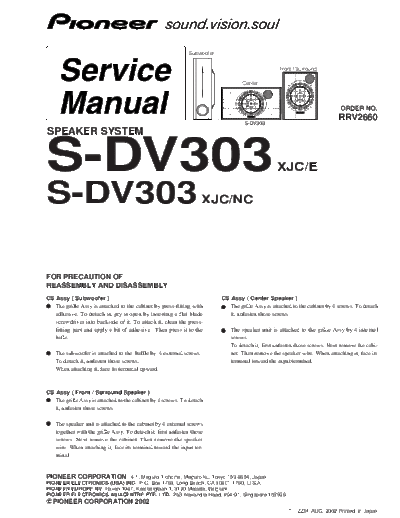

Image preview - the first page of the document



>> Download S-DV303 documenatation <<

Text preview - extract from the document

                                                              Subwoofer

                                                                                                   Front / Surround

                                                                                   Center



                                                                                                                             ORDER NO.

                                                                                    S-DV303
                                                                                                                            RRV2660
SPEAKER SYSTEM


S-DV303                                                                                           XJC/E

S-DV303                                                             XJC/NC




FOR PRECAUTION OF
REASSEMBLY AND DISASSEMBLY
CS Assy ( Subwoofer )                                                     CS Assy ( Center Speaker )
   The grille Assy is attached to the cabinet by press-fitting with          The grille Assy is attached to the cabinet by 4 screws. To detach
   adhesive. To detach it, pry it open by inserting a flat blade             it, unfasten those screws.
   screwdriver into backside of it. To attach it, clean the press-
   fitting part and apply a bit of adhesive . Then press it to the            The speaker unit is attached to the grille Assy by 4 internal
   bafle.                                                                     screws.
                                                                              To detach it, first unfasten those screws. Next remove the cabi-
    The subwoofer is attached to the baffle by 4 external screws.             net. Then remove the speaker wire. When attaching it, face its
    To detach it, unfasten those screws.                                      terminal toward the input terminal.
    When attaching it, face its terminal upward.



CS Assy ( Front / Surround Speaker )
   The grille Assy is attached to the cabinet by 4 screws. To detach
   it, unfasten those screws.

    The speaker unit is attached to the cabinet by 4 external screws
    together with the grille Assy. To detach it, first unfasten those
    screws. Next remove the cabinet. Then remove the speaker
    wire. When attaching it, face its terminal toward the input ter-
    minal.


PIONEER CORPORATION         4-1, Meguro 1-chome, Meguro-ku, Tokyo 153-8654, Japan
PIONEER ELECTRONICS (USA) INC. P.O. Box 1760, Long Beach, CA 90801-1760, U.S.A.
PIONEER EUROPE NV Haven 1087, Keetberglaan 1, 9120 Melsele, Belgium
PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 253 Alexandra Road, #04-01, Singapore 159936
  PIONEER CORPORATION 2002
