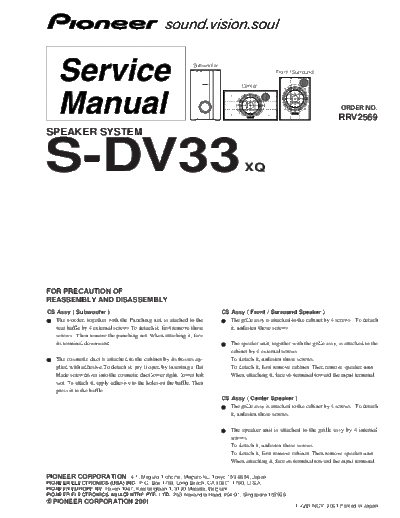

Image preview - the first page of the document
>> Download S-DV33 documenatation <<
Text preview - extract from the document
Subwoofer
Front / Surround
Center
ORDER NO.
RRV2569
SPEAKER SYSTEM
S-DV33 XQ
FOR PRECAUTION OF
REASSEMBLY AND DISASSEMBLY
CS Assy ( Subwoofer ) CS Assy ( Front / Surround Speaker )
The woofer, together with the Punching net, is atached to the The grille assy is attached to the cabinet by 4 screws . To detach
rear baffle by 4 external screws.To detach it, first remove those it, unfasten those screws.
screws . Then remove the punching net .When attaching it, face
its terminal downward . The speaker unit, together with the grille assy, is attached to the
cabinet by 4 external screws.
The cosmetic duct is attached to the cabinet by its bosses ap- To detach it, unfasten those screws.
plied with adhesive.To detach it, pry it open by inserting a flat To detach it, first remove cabinet. Then remove speaker unit.
blade screwdriver into the cosmetic duct lower right, lower left When attaching it, face its terminal toward the input terminal.
slot. To attach it, apply adhesive to the holes on the baffle. Then
press it to the baffle.
CS Assy ( Center Speaker )
The grille assy is attached to the cabinet by 4 screws . To detach
it, unfasten those screws.
The speaker unit is attached to the grille assy by 4 internal
screws.
To detach it, unfasten those screws.
To detach it, first remove cabinet. Then remove speaker unit.
When attaching it, face its terminal toward the input terminal.
PIONEER CORPORATION 4-1, Meguro 1-chome, Meguro-ku, Tokyo 153-8654, Japan
PIONEER ELECTRONICS (USA) INC. P.O. Box 1760, Long Beach, CA 90801-1760, U.S.A.
PIONEER EUROPE NV Haven 1087, Keetberglaan 1, 9120 Melsele, Belgium
PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 253 Alexandra Road, #04-01, Singapore 159936
PIONEER CORPORATION 2001
T-ZZB NOV. 2001 Printed in Japan
S-DV33
PARTS LIST
NOTES: Parts marked by "NSP" are generally unavailable because they are not in our Master Spare Parts List.
The mark found on some component parts indicates the importance of the safety factor of the part.
Therefore, when replacing, be sure to use parts of identical designation.
Mark No. Description Part No. Mark No. Description Part No.
NSP CS Assy (Sub WF) SMW1704 CS Assy (FR)
NSP CS Assy (FR) SMW1675
NSP CS Assy (Center SP) SMW1703 Grille Assy SMG1732
NSP Badge 23 SAM1490
NSP Grille Cloth SAS1500
For Packing NSP Baffle SNK2549
NSP Wire set SEA1562 NSP Cabinet SNK2548
Speaker Wire (White ) SDS1108
Speaker Wire (Red) SDS1109 NSP Model Label (FL) SAN3067
Speaker Wire (Blue) SDS1110 NSP Model Label (FR) SAN3068
Speaker Wire (Gray) SDS1111 NSP Model Label (RL) SAN3069
NSP Model Label (RR) SAN3070
Speaker Wire (Green) SDS1112 Fung Nut M5 SBN1044
Speaker Wire (Purple) SDS1113
Non Skid Pads SEP1240 Speaker Wire SDD1275
NSP Polyethylene Bag S2 SHL1251 Packing SEC1479
In-put Terminal SKX1062
Top Protector SHA2317 NSP Acoustic Absorbent SMV1995
Middle Protector SHA2318 NSP Caution Label SRW1086
Bottom Protector SHA2319
Packing Case SHG2400 Speaker D87DU61-51D
Polyethylene Bag S2 SHL1252 Screw BPZ40P100FZB
Polyethylene Bag S4 SHL1239
Mark No. Description Part No.
CS Assy (Center SP)
Grille Assy SMG1733
Mark No. Description Part No.
NSP Badge 23 SAM1490
CS Assy (Sub WF) NSP Grille Cloth SAS1501
NSP Cabinet SMM1947 NSP Baffle SNK2552
NSP Model Label SAN3072 NSP Cabinet SNK2551
Cable SDD1311
Non Skid Pad SEC1473 NSP Model Label SAN3071
Packing () SEC1542 Speaker Wire SDD1275
Packing SEC1479
Input Terminal SKX1060 In-put Terminal SKX1062
NSP Cosmetic Duct SNK2550 NSP Acoustic Absorbent SMV1995
NSP Paper Tube 46 SMR1343
Punching Net SNC1191 NSP Caution Label SRW1086
NSP Acoustic Absorbent () SMV1984 Speaker D87DU61-51D
Screw (for SP) BPZ40P060FZB
NSP Port Tube Ring 46 SNK2564 Screw (for Grille Assy) BPZ40P100FZB
NSP Caution Label SRW1086
Speaker T12LU82-52D
Screw (for SP) BYC40P130FZB
NSP Staple 80/8 BEA ZMA-8008B
See "PRODUCT APPEARANE".
2
8
2
1
