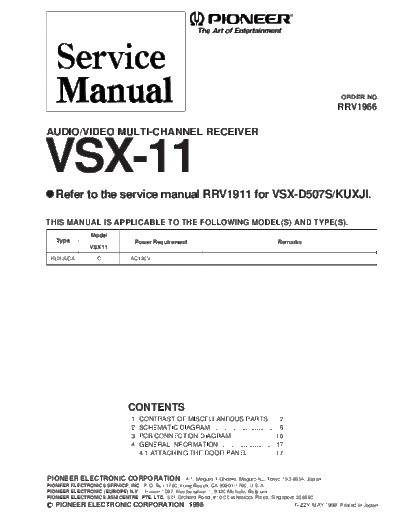

Image preview - the first page of the document



>> Download VSX-11 documenatation <<

Text preview - extract from the document

                                                                                                                ORDER NO.
                                                                                                               RRV1966

AUDIO/VIDEO MULTI-CHANNEL RECEIVER


VSX-11
   Refer to the service manual RRV1911 for VSX-D507S/KUXJI.

THIS MANUAL IS APPLICABLE TO THE FOLLOWING MODEL(S) AND TYPE(S).
                Model
   Type                          Power Requirement                                       Remarks
               VSX11
 KUXJI/CA         O            AC120V




                              CONTENTS
                                1. CONTRAST OF MISCELLANEOUS PARTS ..... 2
                                2. SCHEMATIC DIAGRAM ..................................... 6
                                3. PCB CONNECTION DIAGRAM ....................... 16
                                4. GENERAL INFORMATION .............................. 17
                                   4.1 ATTACHING THE DOOR PANEL .............. 17


PIONEER ELECTRONIC CORPORATION                     4-1, Meguro 1-Chome, Meguro-ku, Tokyo 153-8654, Japan
PIONEER ELECTRONICS SERVICE, INC. P.O. Box 1760, Long Beach, CA 90801-1760, U.S.A.
PIONEER ELECTRONIC (EUROPE) N.V . Haven 1087, Keetberglaan 1, 9120 Melsele, Belgium
PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 501 Orchard Road, #10-00 Wheelock Place, Singapore 238880
C PIONEER ELECTRONIC CORPORATION 1998                                                          T
