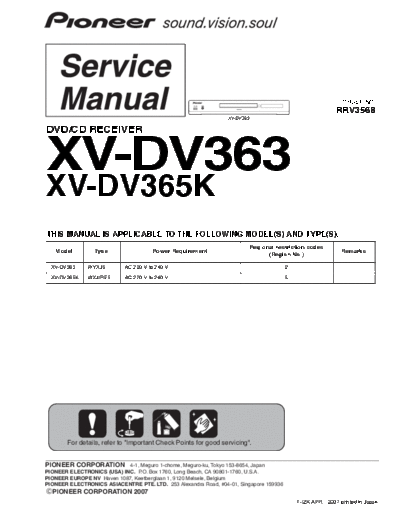

Image preview - the first page of the document



>> Download XV-DV363 documenatation <<

Text preview - extract from the document

                                                                                                             ORDER NO.
                                                                                                           RRV3568
                                                                 XV-DV363

DVD/CD RECEIVER


XV-DV363
XV-DV365K
THIS MANUAL IS APPLICABLE TO THE FOLLOWING MODEL(S) AND TYPE(S).
                                                                            Regional restriction codes
   Model         Type                 Power Requirement                                                      Remarks
                                                                                  (Region No.)

  XV-DV363     WYXJ5        AC 220 V to 240 V                                           2

  XV-DV365K    WXJ/RE5      AC 220 V to 240 V                                           5




       For details, refer to "Important Check Points for good servicing".


PIONEER CORPORATION         4-1, Meguro 1-chome, Meguro-ku, Tokyo 153-8654, Japan
PIONEER ELECTRONICS (USA) INC. P.O. Box 1760, Long Beach, CA 90801-1760, U.S.A.
PIONEER EUROPE NV Haven 1087, Keetberglaan 1, 9120 Melsele, Belgium
PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 253 Alexandra Road, #04-01, Singapore 159936
  PIONEER CORPORATION 2007
                                                                                            T-IZK APR. 2007 printed in Japan
                   1                                   2                                 3                                          4

    SAFETY INFORMATION

A


    This service manual is intended for qualified service technicians ; it is not meant for the casual do-
    it-yourselfer. Qualified technicians have the necessary test equipment and tools, and have been
    trained to properly and safely repair complex products such as those covered by this manual.
    Improperly performed repairs can adversely affect the safety and reliability of the product and
    may void the warranty. If you are not qualified to perform the repair of this product properly and
    safely, you should not risk trying to do so and refer the repair to a qualified service technician.



B
                               WARNING!
        The laser component is capable of emitting radiation exceeding
        the limit for CLASS 1. A specially instructed person should do
        servicing operation of the apparatus.




               LASER DIODE CHARACTERISTICS
        FOR DVD : MAXIMUM OUTPUT POWER : 5 mW
                  WAVELENGTH : 650 nm
        FOR CD : MAXIMUM OUTPUT POWER : 7 mW
                  WAVELENGTH : 780 nm


C
    LABEL CHECK




D
                                                                                                                           VRW2257




                                                                                                  Additional Laser Caution

                                                                           1. Laser Interlock Mechanism
