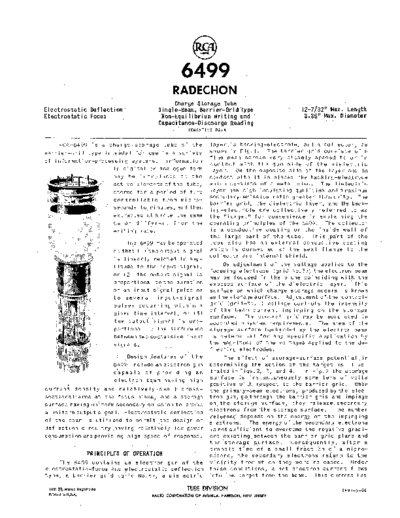

Image preview - the first page of the document



>> Download 6499_Radecon_Mar56 documenatation <<

Text preview - extract from the document

                                                        @)
                                                   6499
                                               RADECHON
                                               Charge storage Tube
Electrostatic Deflection "               Singl e-Beam, Barri er-Gr i d Type                 12-7/32" Max. Length
Electrostatic Focus                       Non-Equi librium Writing and'                      3.35" Max. Diameter
                                         Capacitance-Discha~ge Reading
                                                      TENTATI VE DATA


     RCA-6499 is a charge,storage tube of the . layer,'a backing-electrode, and a collector, as
barrier-grid type  intended. f6r use in a variety      shown in Fig.l.     The barrier grid consists of a
                                                       fine meih screen very closely spaced to or in
of information-processing'systems.       Information
                                                       contact with the gun side of the dielectric
                      in digital or analogue form      layer.   On the opposite side of the layer and in
                      may be introduced to the         contact with i t i s placed the backing-electrode
                      act i ve elements of the tube,   which consists of a metal disc.      The dielectric
                      stored for a period of time       layer has high insulating qualities and amaximum
                                                       secondary-emission ratio greater than unity. The
                      controllable from micro-
                                                       barrier grid, the dielectric layer, and the back-
                      seconds to. mi nutes, and then   ing-electrode are collectively referred to as
                      extracted at a rate the same     the "target" for convenience in ~iplaining the
                      as or' di'fferent from the       operating principles of the 6499.     The collector
                      writin'g rate.                    is a conductive coating on the inside wall of
                                                       the large part of
